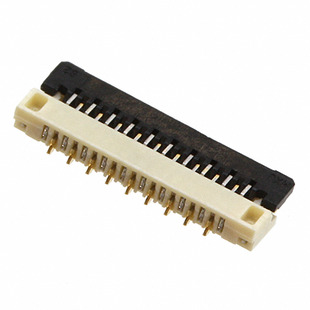

503566-1900 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: 503566-1900
Manufacturer/Brand: Affinity Medical Technologies - a Molex company
Product description CONN FPC BOTTOM 19POS 0.30MM R/A
Datasheets: 1.503566-1900.pdf2.503566-1900.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 105383 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 105383 pcs
Reference Price (In US Dollars)
750 pcs
$0.325
1500 pcs
$0.278
3750 pcs
$0.268
5250 pcs
$0.255
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$0.325

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of 503566-1900

Part Number 503566-1900 Manufacturer Affinity Medical Technologies - a Molex company
Description CONN FPC BOTTOM 19POS 0.30MM R/A Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 105383 pcs Data sheet 1.503566-1900.pdf2.503566-1900.pdf
Voltage Rating 50V Termination Solder
Series Easy-On 503566 Pitch 0.012" (0.30mm)
Packaging Tape & Reel (TR) Other Names 503566-1900-TR750
5035661900
WM8980TR
Operating Temperature -40°C ~ 85°C Number of Positions 19
Mounting Type Surface Mount, Right Angle Moisture Sensitivity Level (MSL) 1 (Unlimited)
Mating Cycles 10 Material Flammability Rating UL94 V-0, UL94 HB
Manufacturer Standard Lead Time 11 Weeks Locking Feature Flip Lock
Lead Free Status / RoHS Status Lead free / RoHS Compliant Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Housing Color White Height Above Board 0.037" (0.95mm)
Flat Flex Type FPC Features Solder Retention
FFC, FCB Thickness 0.20mm Detailed Description 19 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Current Rating 0.2A Contact Material Phosphor Bronze
Contact Finish Thickness - Contact Finish Gold
Connector/Contact Type Contacts, Bottom Cable End Type Tabbed
Actuator Material Polyamide (PA), Nylon, Glass Filled Actuator Color Black
