5034802000

Affinity Medical Technologies - a Molex company

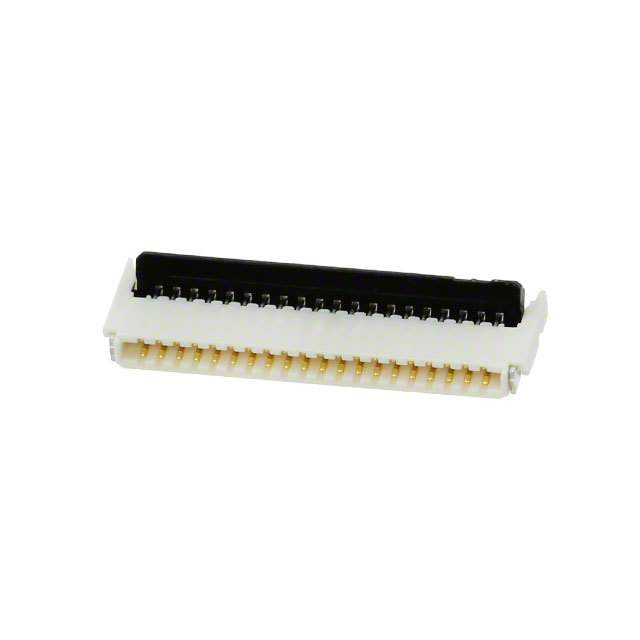

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5034802000
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FFC FPC 20POS 0.50MM R/A
Datasheets:	1.5034802000.pdf 2.5034802000.pdf 3.5034802000.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	121467 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 121467 pcs

Reference Price (In US Dollars)

3000 pcs: $0.26

6000 pcs: $0.247

9000 pcs: $0.241

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.26

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5034802000

Part Number	5034802000	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FFC FPC 20POS 0.50MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	121467 pcs	Data sheet	1.5034802000.pdf 2.5034802000.pdf 3.5034802000.pdf
Voltage Rating	50V	Termination	Solder
Series	BackFlip, Easy-On 503480	Pitch	0.020" (0.50mm)
Packaging	Tape & Reel (TR)	Other Names	503480-2000 WM1445TR
Operating Temperature	-40°C ~ 85°C	Number of Positions	20
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	10	Material Flammability Rating	UL94 V-0, UL94 HB
Manufacturer Standard Lead Time	9 Weeks	Locking Feature	Flip Lock, Backlock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Housing Color	White	Height Above Board	0.039" (1.00mm)
Flat Flex Type	FFC, FPC	Features	Solder Retention
FFC, FCB Thickness	0.30mm	Detailed Description	20 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Current Rating	0.5A	Contact Material	Phosphor Bronze
Contact Finish Thickness	3.90µin (0.099µm)	Contact Finish	Gold
Connector/Contact Type	Contacts, Top and Bottom	Cable End Type	Straight, Tapered
Actuator Material	Polyamide (PA), Nylon, Glass Filled	Actuator Color	Black
