5034256191

Affinity Medical Technologies - a Molex company

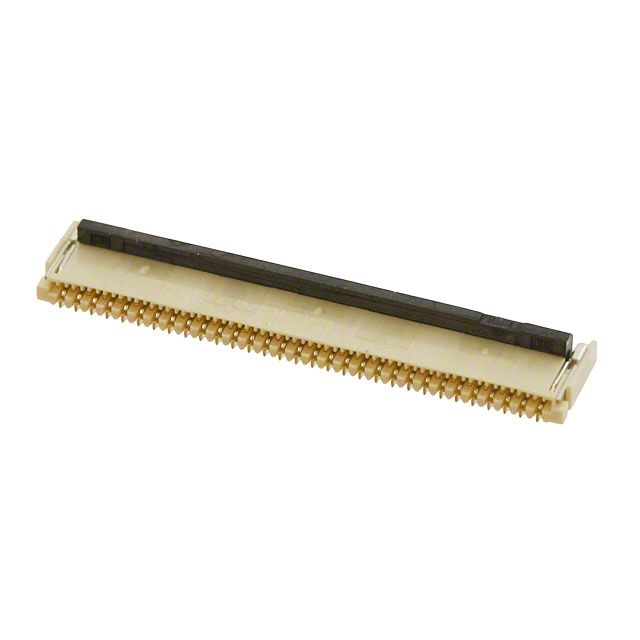

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5034256191
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FPC 61POS 0.30MM R/A
Datasheets:	1.5034256191.pdf 2.5034256191.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	37931 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 37931 pcs

Reference Price (In US Dollars)

1 pcs: $0.845

10 pcs: $0.767

25 pcs: $0.72

50 pcs: $0.689

100 pcs: $0.658

250 pcs: $0.595

500 pcs: $0.548

1000 pcs: $0.47

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.845

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5034256191

Part Number	5034256191	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FPC 61POS 0.30MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	37931 pcs	Data sheet	1.5034256191.pdf 2.5034256191.pdf
Voltage Rating	50V	Termination	Solder
Series	BackFlip, Easy-On 503425	Pitch	0.012" (0.30mm)
Packaging	Cut Tape (CT)	Other Names	WM8991CT
Operating Temperature	-40°C ~ 85°C	Number of Positions	61
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	10	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	10 Weeks	Locking Feature	Flip Lock, Backlock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Housing Color	White	Height Above Board	0.047" (1.20mm)
Flat Flex Type	FPC	Features	Solder Retention
FFC, FCB Thickness	0.20mm	Detailed Description	61 Position FPC Connector Contacts, Top and Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Current Rating	0.2A	Contact Material	Copper Alloy
Contact Finish Thickness	3.90µin (0.099µm)	Contact Finish	Gold
Connector/Contact Type	Contacts, Top and Bottom	Cable End Type	Notched
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled	Actuator Color	Black
