5033668011

Affinity Medical Technologies - a Molex company

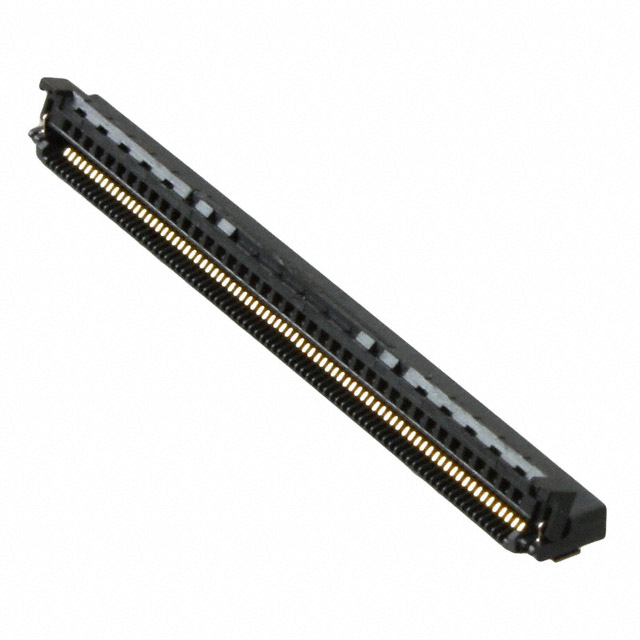

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5033668011
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FFC BOTTOM 80POS 0.50MM R/A
Datasheets:	1.5033668011.pdf 2.5033668011.pdf 3.5033668011.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	78980 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 78980 pcs

Reference Price (In US Dollars)

6000 pcs: $0.475

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.475

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5033668011

Part Number	5033668011	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FFC BOTTOM 80POS 0.50MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	78980 pcs	Data sheet	1.5033668011.pdf 2.5033668011.pdf 3.5033668011.pdf
Voltage Rating	50V	Termination	Solder
Series	Easy-On 503366	Pitch	0.020" (0.50mm)
Packaging	Tape & Reel (TR)	Other Names	503366-8011 WM8691TR
Operating Temperature	-20°C ~ 85°C	Number of Positions	80
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	20	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	9 Weeks	Locking Feature	Flip Lock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Housing Color	Black	Height Above Board	0.079" (2.00mm)
Flat Flex Type	FFC, FPC	Features	Solder Retention
FFC, FCB Thickness	0.30mm	Detailed Description	80 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Current Rating	0.5A	Contact Material	Phosphor Bronze
Contact Finish Thickness	-	Contact Finish	Gold
Connector/Contact Type	Contacts, Bottom	Cable End Type	Tabbed, Tapered
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled	Actuator Color	Black
