5027613300

Affinity Medical Technologies - a Molex company

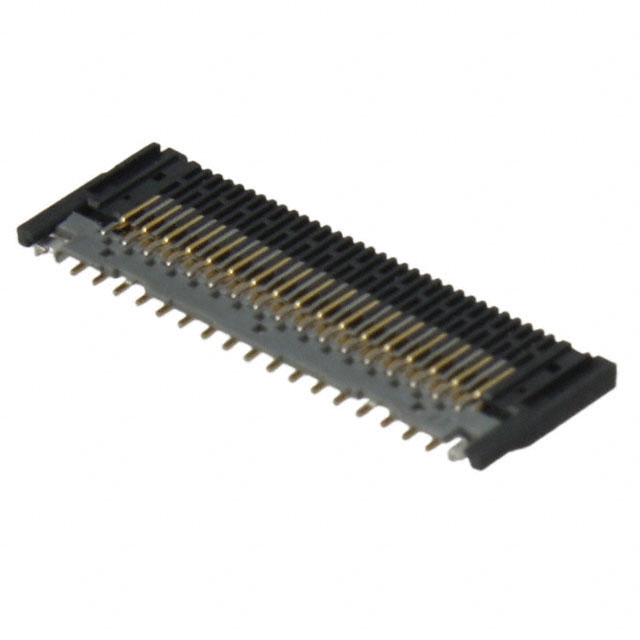

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5027613300
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FPC BOTTOM 33POS 0.30MM R/A
Datasheets:	5027613300.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5278 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5278 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5027613300

Part Number	5027613300	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FPC BOTTOM 33POS 0.30MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5278 pcs	Data sheet	5027613300.pdf
Voltage Rating	50V	Termination	Solder
Series	Easy-On 502761	Pitch	0.012" (0.30mm)
Packaging	Tape & Reel (TR)	Other Names	502761-3300 WM2266TR
Operating Temperature	-40°C ~ 85°C	Number of Positions	33
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	10	Material Flammability Rating	UL94 V-0
Locking Feature	Flip Lock	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled	Housing Color	Black
Height Above Board	0.024" (0.61mm)	Flat Flex Type	FPC
Features	-	FFC, FCB Thickness	0.12mm
Detailed Description	33 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle	Current Rating	0.2A
Contact Material	Copper Alloy	Contact Finish Thickness	-
Contact Finish	Gold	Connector/Contact Type	Contacts, Bottom
Cable End Type	Tabbed	Actuator Material	Liquid Crystal Polymer (LCP), Glass Filled
Actuator Color	Gray
