5025985193

Affinity Medical Technologies - a Molex company

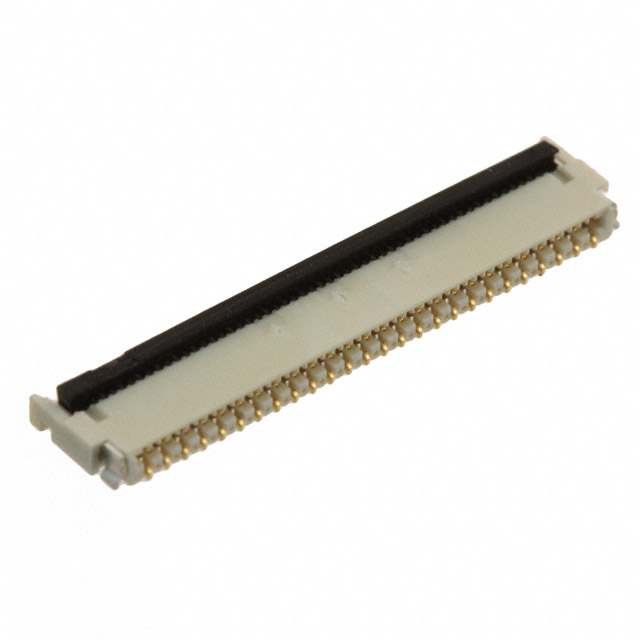

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5025985193
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FPC 51POS 0.30MM R/A
Datasheets:	5025985193.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	34083 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 34083 pcs

Reference Price (In US Dollars)

1 pcs: $0.939

10 pcs: $0.853

25 pcs: $0.80

50 pcs: $0.766

100 pcs: $0.731

250 pcs: $0.661

500 pcs: $0.609

1000 pcs: $0.522

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.939

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5025985193

Part Number	5025985193	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FPC 51POS 0.30MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	34083 pcs	Data sheet	5025985193.pdf
Voltage Rating	50V	Termination	Solder
Series	BackFlip, Easy-On 502598	Pitch	0.012" (0.30mm)
Packaging	Cut Tape (CT)	Other Names	WM14415CT
Operating Temperature	-40°C ~ 85°C	Number of Positions	51
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	10	Material Flammability Rating	UL94 V-0, UL94 HB
Manufacturer Standard Lead Time	12 Weeks	Locking Feature	Flip Lock, Backlock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Housing Color	White	Height Above Board	0.045" (1.14mm)
Flat Flex Type	FPC	Features	Solder Retention
FFC, FCB Thickness	0.20mm	Detailed Description	51 Position FPC Connector Contacts, Top and Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Current Rating	0.2A	Contact Material	Phosphor Bronze
Contact Finish Thickness	3.90µin (0.099µm)	Contact Finish	Gold
Connector/Contact Type	Contacts, Top and Bottom	Cable End Type	Tapered
Actuator Material	Polyamide (PA), Nylon, Glass Filled	Actuator Color	Black
