Affinity Medical Technologies - a Molex company

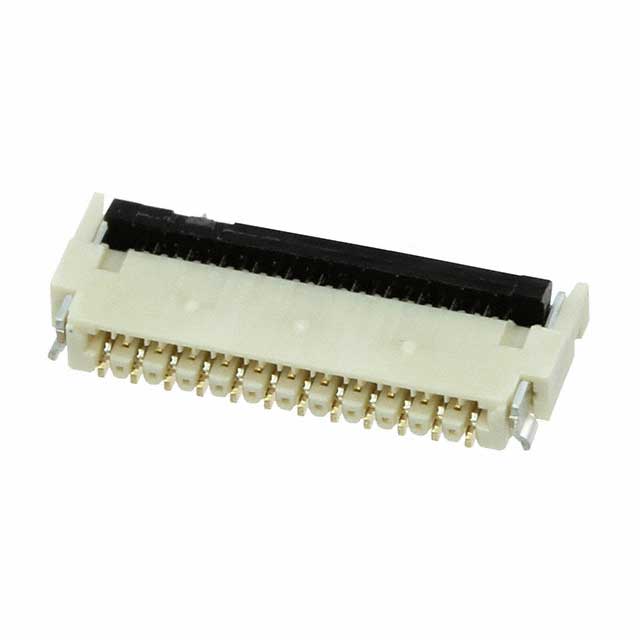

| Part Number | 5025982393 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FPC 23POS 0.30MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 120960 pcs | Data sheet | 1.5025982393.pdf2.5025982393.pdf |
| Voltage Rating | 50V | Termination | Solder |
| Series | BackFlip, Easy-On 502598 | Pitch | 0.012" (0.30mm) |
| Packaging | Tape & Reel (TR) | Other Names | 05025982393 502598-2393 5025982393-ND WM9780TR |
| Operating Temperature | -40°C ~ 85°C | Number of Positions | 23 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 10 | Material Flammability Rating | UL94 V-0, UL94 HB |
| Manufacturer Standard Lead Time | 12 Weeks | Locking Feature | Flip Lock, Backlock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Housing Color | White | Height Above Board | 0.045" (1.14mm) |
| Flat Flex Type | FPC | Features | Solder Retention |
| FFC, FCB Thickness | 0.20mm | Detailed Description | 23 Position FPC Connector Contacts, Top and Bottom 0.012" (0.30mm) Surface Mount, Right Angle |
| Current Rating | 0.2A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | 3.90µin (0.099µm) | Contact Finish | Gold |
| Connector/Contact Type | Contacts, Top and Bottom | Cable End Type | Tapered |
| Actuator Material | Polyamide (PA), Nylon, Glass Filled | Actuator Color | Black |
