5025850770

Affinity Medical Technologies - a Molex company

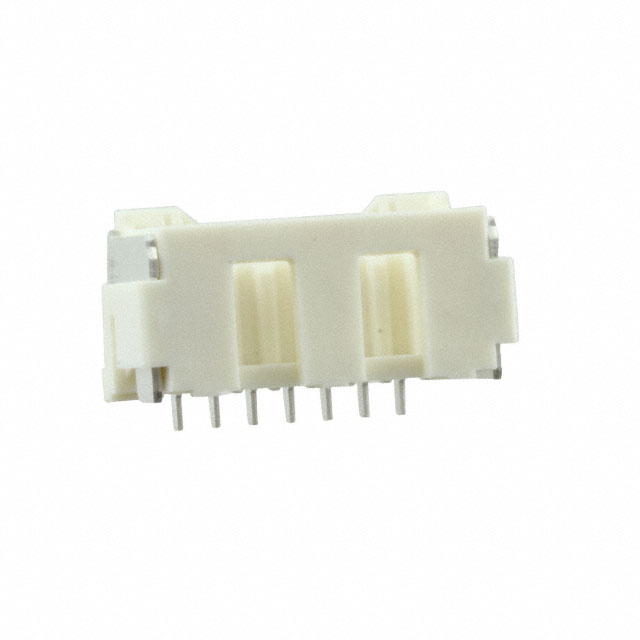

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5025850770
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN SGL R/A RCPT 7CKT
Datasheets:	5025850770.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	248683 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 248683 pcs

Reference Price (In US Dollars)

1000 pcs: $0.131

2000 pcs: $0.127

3000 pcs: $0.119

5000 pcs: $0.115

10000 pcs: $0.107

25000 pcs: $0.104

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.131

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5025850770

Part Number	5025850770	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN SGL R/A RCPT 7CKT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	248683 pcs	Data sheet	5025850770.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Series	CLIK-Mate 502585
Row Spacing - Mating	-	Pitch - Mating	0.059" (1.50mm)
Packaging	Tape & Reel (TR)	Other Names	502585-0770 5025850770-ND WM14470TR
Operating Temperature	-40°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	7
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Resin	Insulation Height	0.250" (6.35mm)
Insulation Color	Beige	Ingress Protection	-
Features	Pick and Place, Solder Retention	Fastening Type	Latch Holder
Detailed Description	7 Position Receptacle Connector 0.059" (1.50mm) Surface Mount, Right Angle Tin	Current Rating	-
Contact Type	Forked	Contact Shape	-
Contact Material	Copper Alloy	Contact Length - Post	-
Contact Finish Thickness - Post	39.4µin (1.00µm)	Contact Finish Thickness - Mating	39.4µin (1.00µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Receptacle	Applications	Automotive, General Purpose, Industrial, Lighting, Medical
