502494-0370

Affinity Medical Technologies - a Molex company

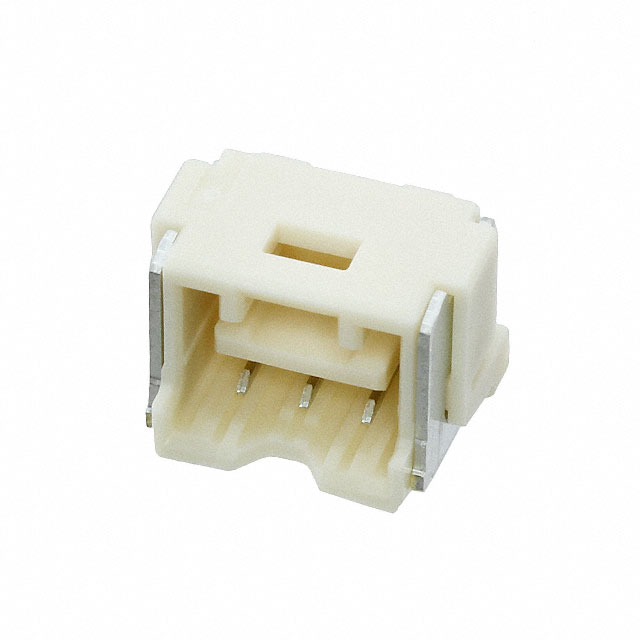

Image may be representation. See specifications for product details.

Product Overview

Part Number:	502494-0370
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	2.0 W/B SGL R/ARECASSY3CKTEMBSTP
Datasheets:	1.502494-0370.pdf 2.502494-0370.pdf 3.502494-0370.pdf 4.502494-0370.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	188547 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 188547 pcs

Reference Price (In US Dollars)

1 pcs: $0.206

10 pcs: $0.193

25 pcs: $0.174

50 pcs: $0.155

100 pcs: $0.148

250 pcs: $0.135

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.206

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 502494-0370

Part Number	502494-0370	Manufacturer	Affinity Medical Technologies - a Molex company
Description	2.0 W/B SGL R/ARECASSY3CKTEMBSTP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	188547 pcs	Data sheet	1.502494-0370.pdf 2.502494-0370.pdf 3.502494-0370.pdf 4.502494-0370.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Series	CLIK-Mate 502494
Row Spacing - Mating	-	Pitch - Mating	0.079" (2.00mm)
Packaging	Cut Tape (CT)	Other Names	WM15811CT
Operating Temperature	-40°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	3
Mounting Type	Surface Mount, Right Angle	Material Flammability Rating	UL94 V-0
Mated Stacking Heights	-	Manufacturer Standard Lead Time	22 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Resin
Insulation Height	0.270" (6.86mm)	Insulation Color	Natural
Ingress Protection	-	Features	Pick and Place, Solder Retention
Fastening Type	Latch Holder	Detailed Description	3 Position Receptacle Connector 0.079" (2.00mm) Surface Mount, Right Angle Tin
Current Rating	-	Contact Type	Forked
Contact Shape	-	Contact Material	Copper Alloy
Contact Length - Post	-	Contact Finish Thickness - Post	39.4µin (1.00µm)
Contact Finish Thickness - Mating	39.4µin (1.00µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Receptacle
Applications	Automotive, General Purpose, Industrial, Lighting, Medical
