502426-8030

Affinity Medical Technologies - a Molex company

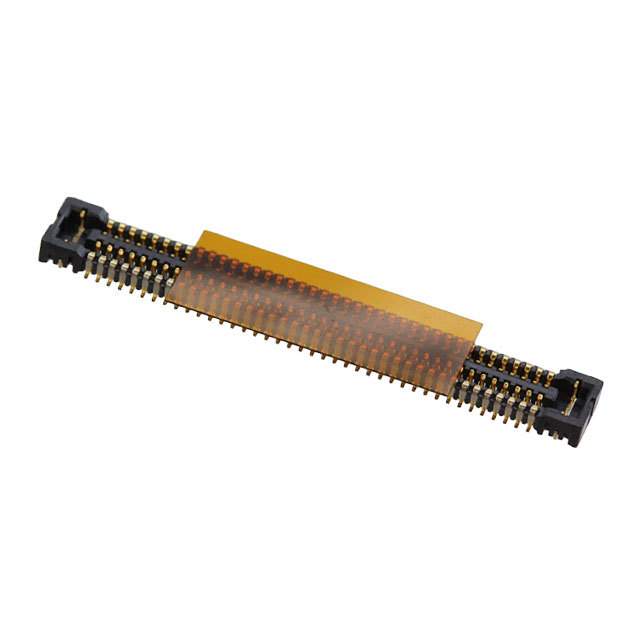

Image may be representation. See specifications for product details.

Product Overview

Part Number:	502426-8030
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN 0.4MM BTB RCPT 80POS SMD
Datasheets:	1.502426-8030.pdf 2.502426-8030.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	42658 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 42658 pcs

Reference Price (In US Dollars)

750 pcs: $0.728

1500 pcs: $0.657

3750 pcs: $0.634

5250 pcs: $0.61

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.728

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 502426-8030

Part Number	502426-8030	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN 0.4MM BTB RCPT 80POS SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	42658 pcs	Data sheet	1.502426-8030.pdf 2.502426-8030.pdf
Series	SlimStack 502426	Pitch	0.016" (0.40mm)
Packaging	Tape & Reel (TR)	Other Names	502426-8030-TR750 5024268030 WM9050TR
Number of Rows	2	Number of Positions	80
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mated Stacking Heights	1mm	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Above Board	0.039" (1.00mm)
Features	Solder Retention	Detailed Description	80 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Contact Finish Thickness	3.90µin (0.099µm)	Contact Finish	Gold
Connector Type	Receptacle, Center Strip Contacts
