5023861370

Affinity Medical Technologies - a Molex company

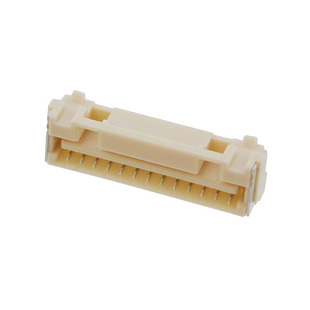

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5023861370
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN RCPT 13POS 1.25MM R/A SMD
Datasheets:	5023861370.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	174454 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 174454 pcs

Reference Price (In US Dollars)

4800 pcs: $0.193

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.193

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5023861370

Part Number	5023861370	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN RCPT 13POS 1.25MM R/A SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	174454 pcs	Data sheet	5023861370.pdf
Voltage Rating	50V	Termination	Solder
Style	Board to Cable/Wire	Series	CLIK-Mate 502386
Row Spacing - Mating	-	Pitch - Mating	0.049" (1.25mm)
Packaging	Tape & Reel (TR)	Other Names	502386-1370 WM4956TR
Operating Temperature	-40°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	13
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	19 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Resin	Insulation Height	0.215" (5.45mm)
Insulation Color	Natural	Ingress Protection	-
Features	Solder Retention	Fastening Type	Latch Holder
Detailed Description	13 Position Receptacle Connector 0.049" (1.25mm) Surface Mount, Right Angle Tin	Current Rating	1A
Contact Type	Forked	Contact Shape	-
Contact Material	Copper Alloy	Contact Length - Post	-
Contact Finish Thickness - Post	39.4µin (1.00µm)	Contact Finish Thickness - Mating	39.4µin (1.00µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Receptacle	Applications	Automotive, General Purpose, Industrial, Lighting, Medical
