5023821170

Affinity Medical Technologies - a Molex company

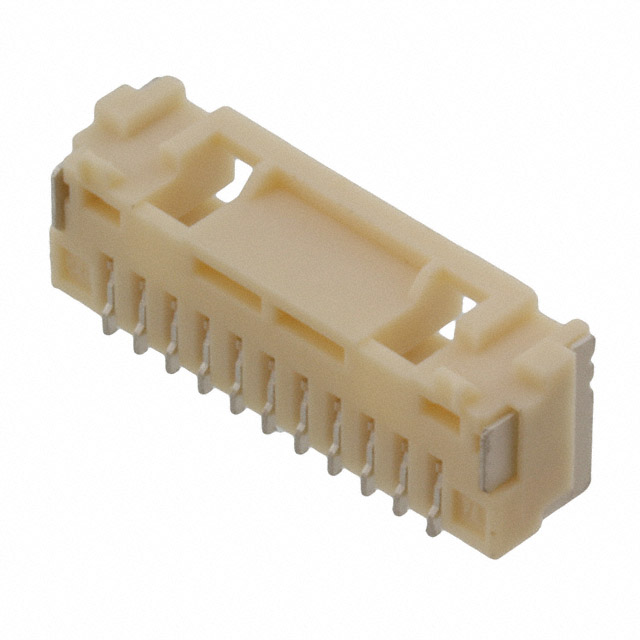

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5023821170
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN RCPT 11POS 1.25MM W/B VERT
Datasheets:	5023821170.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	125223 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 125223 pcs

Reference Price (In US Dollars)

1 pcs: $0.314

10 pcs: $0.275

100 pcs: $0.237

500 pcs: $0.194

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.314

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5023821170

Part Number	5023821170	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN RCPT 11POS 1.25MM W/B VERT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	125223 pcs	Data sheet	5023821170.pdf
Voltage Rating	50V	Termination	Solder
Style	Board to Cable/Wire	Series	CLIK-Mate 502382
Row Spacing - Mating	-	Pitch - Mating	0.049" (1.25mm)
Packaging	Original-Reel®	Other Names	WM4941DKR
Operating Temperature	-40°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	11
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	19 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Resin	Insulation Height	0.173" (4.40mm)
Insulation Color	Natural	Ingress Protection	-
Features	Solder Retention	Fastening Type	Latch Holder
Detailed Description	11 Position Receptacle Connector 0.049" (1.25mm) Surface Mount Tin	Current Rating	1A
Contact Type	Forked	Contact Shape	-
Contact Material	Copper Alloy	Contact Length - Post	-
Contact Finish Thickness - Post	39.4µin (1.00µm)	Contact Finish Thickness - Mating	39.4µin (1.00µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Receptacle	Applications	Automotive, General Purpose, Industrial, Lighting, Medical
