5023520300

Affinity Medical Technologies - a Molex company

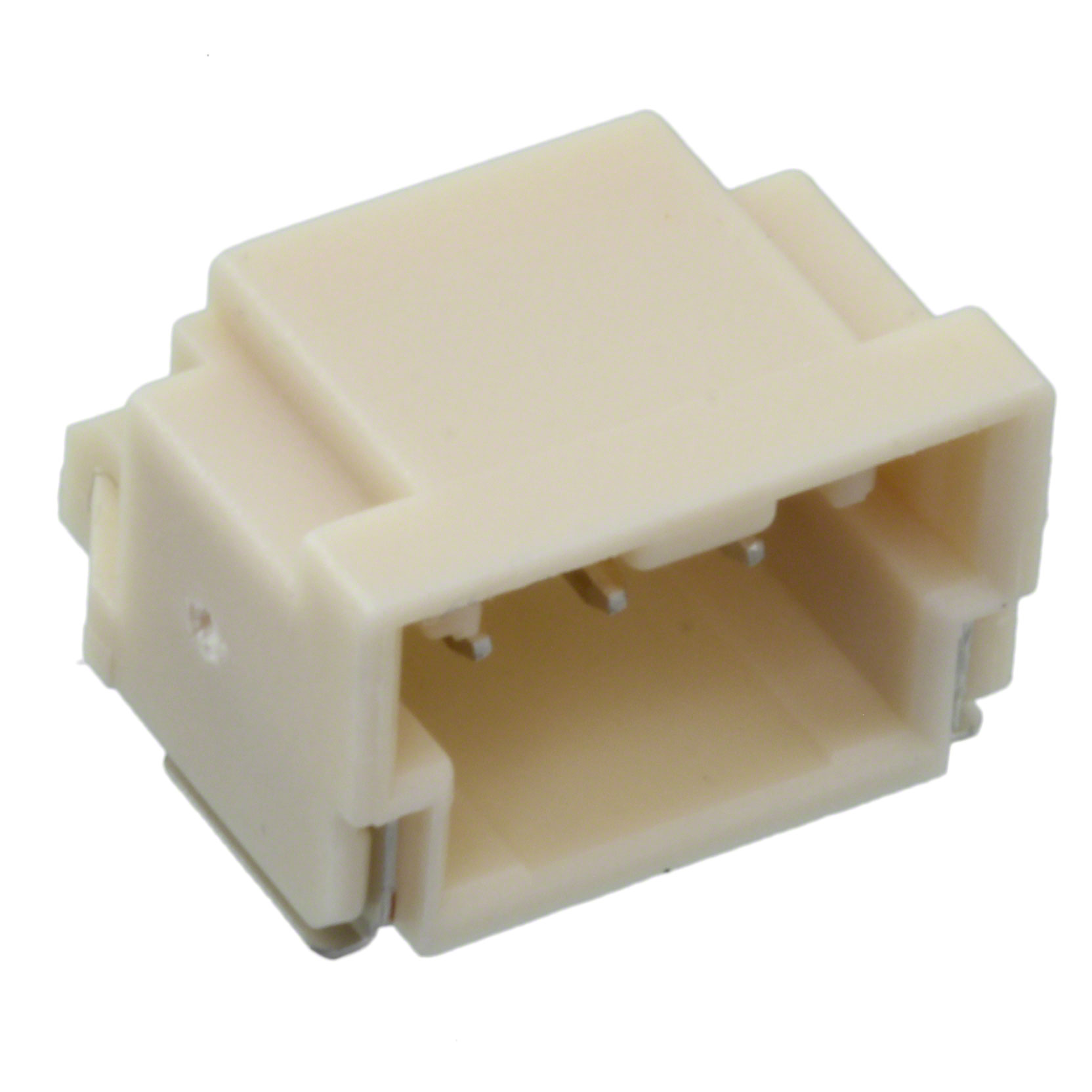

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5023520300
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 3POS 2MM R/A SMD
Datasheets:	1.5023520300.pdf 2.5023520300.pdf 3.5023520300.pdf 4.5023520300.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	85926 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 85926 pcs

Reference Price (In US Dollars)

1 pcs: $0.394

10 pcs: $0.345

100 pcs: $0.298

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.394

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5023520300

Part Number	5023520300	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 3POS 2MM R/A SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	85926 pcs	Data sheet	1.5023520300.pdf 2.5023520300.pdf 3.5023520300.pdf 4.5023520300.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	DuraClik 502352	Row Spacing - Mating	-
Pitch - Mating	0.079" (2.00mm)	Packaging	Cut Tape (CT)
Overall Contact Length	-	Other Names	WM10858CT
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	3
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.252" (6.40mm)
Insulation Color	Natural	Ingress Protection	-
Features	Solder Retention	Fastening Type	Latch Lock
Detailed Description	Connector Header Surface Mount, Right Angle 3 position 0.079" (2.00mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper Alloy	Contact Length - Post	-
Contact Length - Mating	0.136" (3.45mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive, Industrial
