502250-3991

Affinity Medical Technologies - a Molex company

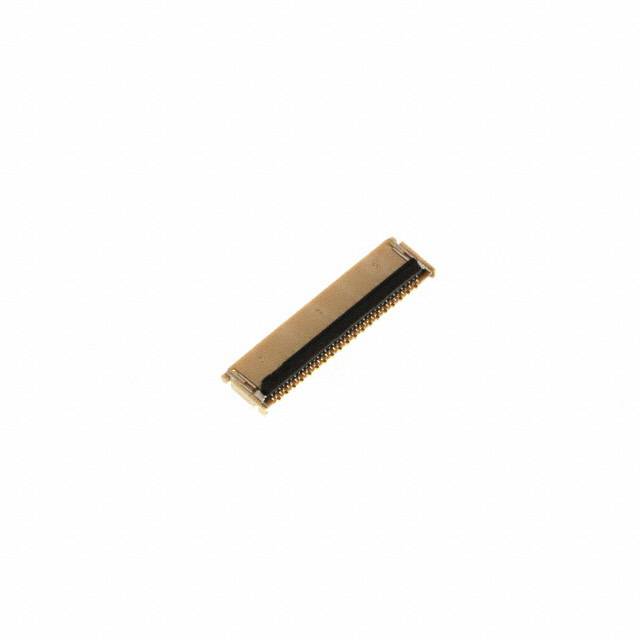

Image may be representation. See specifications for product details.

Product Overview

Part Number:	502250-3991
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FPC 39POS 0.30MM R/A
Datasheets:	502250-3991.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	20893 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 20893 pcs

Reference Price (In US Dollars)

1 pcs: $1.629

10 pcs: $1.564

25 pcs: $1.434

50 pcs: $1.369

100 pcs: $1.303

250 pcs: $1.14

500 pcs: $1.108

1000 pcs: $0.945

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.629

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 502250-3991

Part Number	502250-3991	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FPC 39POS 0.30MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	20893 pcs	Data sheet	502250-3991.pdf
Voltage Rating	50V	Termination	Solder
Series	BackFlip, Easy-On 502250	Pitch	0.012" (0.30mm)
Packaging	Cut Tape (CT)	Other Names	WM2238 WM2238-ND WM2238CT
Operating Temperature	-25°C ~ 85°C	Number of Positions	39
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	10	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	13 Weeks	Locking Feature	Flip Lock, Backlock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Housing Color	Natural	Height Above Board	0.035" (0.88mm)
Flat Flex Type	FPC	Features	-
FFC, FCB Thickness	0.20mm	Detailed Description	39 Position FPC Connector Contacts, Top and Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Current Rating	0.2A	Contact Material	Copper Alloy
Contact Finish Thickness	-	Contact Finish	Gold
Connector/Contact Type	Contacts, Top and Bottom	Cable End Type	Notched or Tabbed
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled	Actuator Color	Black
