5022250801

Affinity Medical Technologies - a Molex company

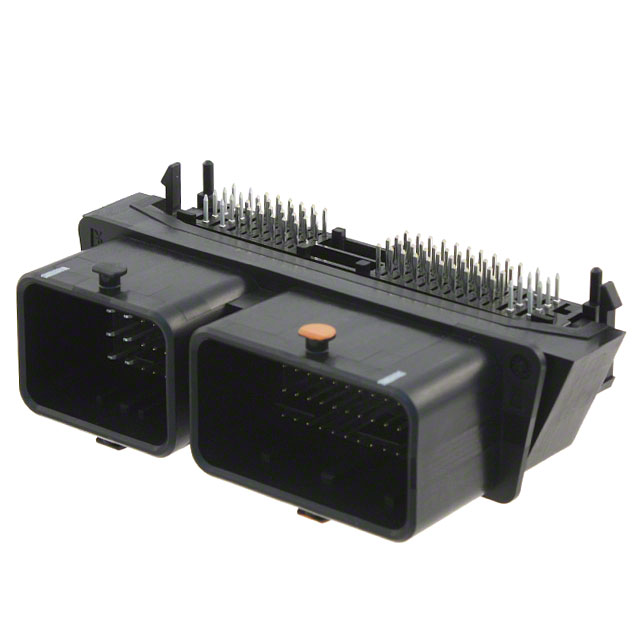

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5022250801
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HDR 80POS R/A 2-POCKET CMC
Datasheets:	5022250801.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	13816 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 13816 pcs

Reference Price (In US Dollars)

1 pcs: $2.579

64 pcs: $2.15

128 pcs: $2.042

512 pcs: $1.72

1024 pcs: $1.505

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.579

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5022250801

Part Number	5022250801	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HDR 80POS R/A 2-POCKET CMC	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	13816 pcs	Data sheet	5022250801.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	CMC 502225	Row Spacing - Mating	-
Pitch - Mating	-	Packaging	Tray
Overall Contact Length	-	Other Names	0502225-0801 502225-0801 WM4531
Operating Temperature	-	Number of Rows	4
Number of Positions Loaded	All	Number of Positions	80 (48 + 32)
Mounting Type	Board Edge, Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	-
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Insulation Height	0.980" (24.90mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Guide, Board Lock, Mounting Flange	Fastening Type	Latch Lock
Detailed Description	Connector Header Board Edge, Through Hole, Right Angle 80 (48 + 32) position	Current Rating	-
Contact Type	Male Pin	Contact Shape	-
Contact Material	Copper Alloy	Contact Length - Post	-
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive
