5020781360

Affinity Medical Technologies - a Molex company

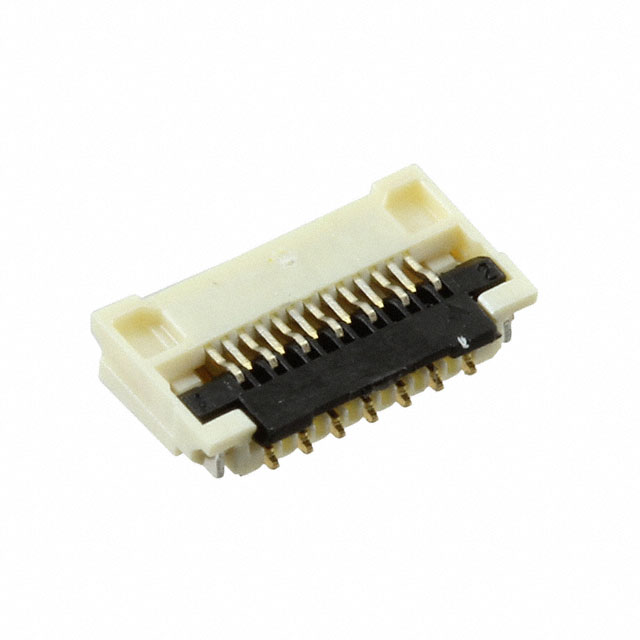

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5020781360
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FPC BOTTOM 13POS 0.25MM R/A
Datasheets:	1.5020781360.pdf 2.5020781360.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	74521 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 74521 pcs

Reference Price (In US Dollars)

1 pcs: $0.531

10 pcs: $0.483

25 pcs: $0.453

50 pcs: $0.434

100 pcs: $0.414

250 pcs: $0.374

500 pcs: $0.345

1000 pcs: $0.296

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.531

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5020781360

Part Number	5020781360	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FPC BOTTOM 13POS 0.25MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	74521 pcs	Data sheet	1.5020781360.pdf 2.5020781360.pdf
Voltage Rating	50V	Termination	Solder
Series	Easy-On 502078	Pitch	0.010" (0.25mm)
Packaging	Cut Tape (CT)	Other Names	WM14414CT
Operating Temperature	-20°C ~ 85°C	Number of Positions	13
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	10	Material Flammability Rating	UL94 V-0, UL94 HB
Manufacturer Standard Lead Time	10 Weeks	Locking Feature	Flip Lock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Liquid Crystal Polymer (LCP)
Housing Color	Beige	Height Above Board	0.039" (1.00mm)
Flat Flex Type	FPC	Features	-
FFC, FCB Thickness	0.20mm	Detailed Description	13 Position FPC Connector Contacts, Bottom 0.010" (0.25mm) Surface Mount, Right Angle
Current Rating	0.2A	Contact Material	Phosphor Bronze
Contact Finish Thickness	3.90µin (0.099µm)	Contact Finish	Gold
Connector/Contact Type	Contacts, Bottom	Cable End Type	Tapered
Actuator Material	Polyamide (PA), Nylon	Actuator Color	Black
