501912-2590

Affinity Medical Technologies - a Molex company

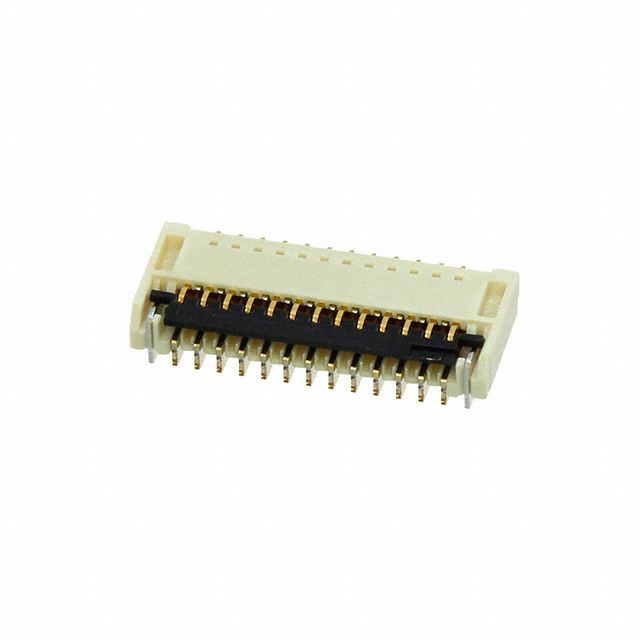

Image may be representation. See specifications for product details.

Product Overview

Part Number:	501912-2590
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FPC BOTTOM 25POS 0.30MM R/A
Datasheets:	501912-2590.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	59701 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 59701 pcs

Reference Price (In US Dollars)

1 pcs: $0.578

10 pcs: $0.526

25 pcs: $0.494

50 pcs: $0.472

100 pcs: $0.451

250 pcs: $0.408

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.578

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 501912-2590

Part Number	501912-2590	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FPC BOTTOM 25POS 0.30MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	59701 pcs	Data sheet	501912-2590.pdf
Voltage Rating	50V	Termination	Solder
Series	Easy-On 501912	Pitch	0.012" (0.30mm)
Packaging	Original-Reel®	Other Names	WM2212DKR
Operating Temperature	-20°C ~ 85°C	Number of Positions	25
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	20	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	19 Weeks	Locking Feature	Flip Lock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Polymer, Glass Filled
Housing Color	-	Height Above Board	-
Flat Flex Type	FPC	Features	Solder Retention
FFC, FCB Thickness	0.20mm	Detailed Description	25 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Current Rating	0.2A	Contact Material	Copper Alloy
Contact Finish Thickness	-	Contact Finish	Gold
Connector/Contact Type	Contacts, Bottom	Cable End Type	Tapered
Actuator Material	Polymer, Glass Filled	Actuator Color	-
