5018643092

Affinity Medical Technologies - a Molex company

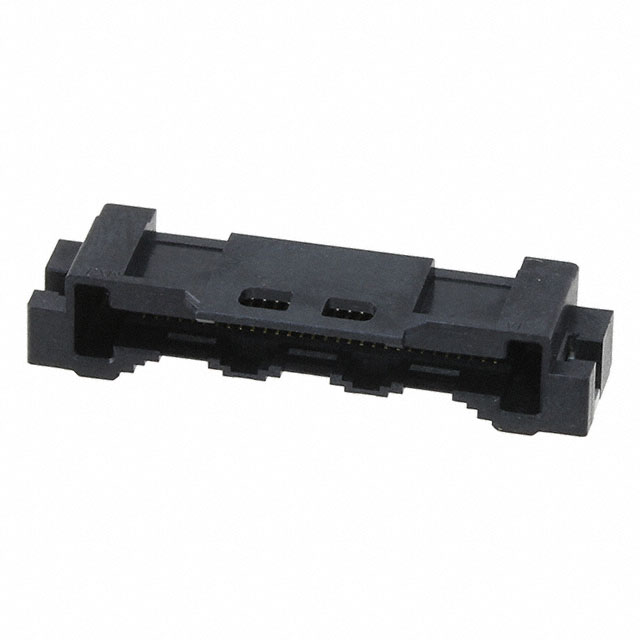

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5018643092
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FFC BOTTOM 30POS 0.50MM R/A
Datasheets:	5018643092.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	65049 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 65049 pcs

Reference Price (In US Dollars)

900 pcs: $0.517

1800 pcs: $0.441

2700 pcs: $0.426

6300 pcs: $0.405

9000 pcs: $0.396

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.517

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5018643092

Part Number	5018643092	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FFC BOTTOM 30POS 0.50MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	65049 pcs	Data sheet	5018643092.pdf
Voltage Rating	50V	Termination	Solder
Series	Easy-On 501864	Pitch	0.020" (0.50mm)
Packaging	Tape & Reel (TR)	Other Names	501864-3092 5018643092-ND WM14440TR
Operating Temperature	-40°C ~ 85°C	Number of Positions	30
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	20	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	12 Weeks	Locking Feature	Slide Lock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Housing Color	Black	Height Above Board	0.191" (4.85mm)
Flat Flex Type	FFC	Features	Board Guide, Solder Retention
FFC, FCB Thickness	0.30mm	Detailed Description	30 Position FFC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Current Rating	0.5A	Contact Material	Copper Alloy
Contact Finish Thickness	-	Contact Finish	Gold
Connector/Contact Type	Contacts, Bottom	Cable End Type	Notched
Actuator Material	-	Actuator Color	-
