5016451220

Affinity Medical Technologies - a Molex company

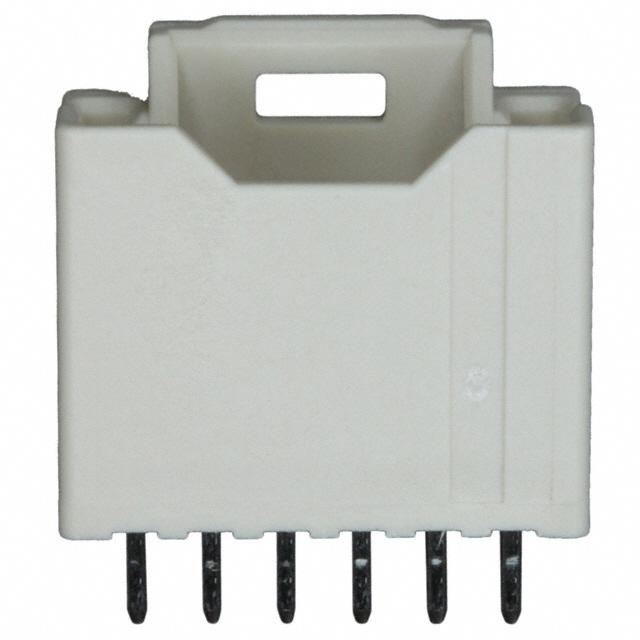

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5016451220
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 12POS 2MM VERT TIN
Datasheets:	5016451220.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	119047 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 119047 pcs

Reference Price (In US Dollars)

1 pcs: $0.253

10 pcs: $0.236

100 pcs: $0.181

500 pcs: $0.157

1050 pcs: $0.13

5250 pcs: $0.114

10500 pcs: $0.106

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.253

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5016451220

Part Number	5016451220	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 12POS 2MM VERT TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	119047 pcs	Data sheet	5016451220.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	iGrid 501645	Row Spacing - Mating	0.079" (2.00mm)
Pitch - Mating	0.079" (2.00mm)	Packaging	Tray
Overall Contact Length	-	Other Names	501645-1220 WM4443 WM4443-ND WM6073
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	12
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled	Insulation Height	0.472" (12.00mm)
Insulation Color	Natural	Ingress Protection	-
Features	Board Guide	Fastening Type	Latch Holder
Detailed Description	Connector Header Through Hole 12 position 0.079" (2.00mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.126" (3.20mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive, General Purpose, Industrial, Medical, Telecommunications
