47504-0001

Affinity Medical Technologies - a Molex company

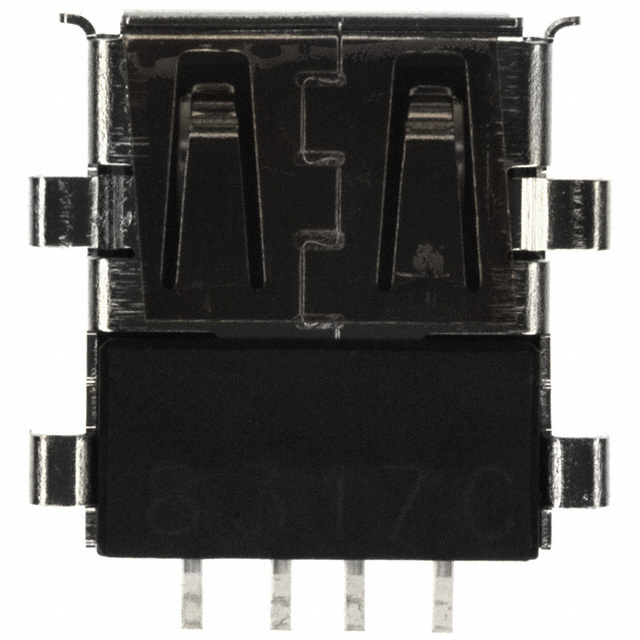

Image may be representation. See specifications for product details.

Product Overview

Part Number:	47504-0001
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN RCPT USB RT ANG REV SMD
Datasheets:	47504-0001.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5096 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5096 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 47504-0001

Part Number	47504-0001	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN RCPT USB RT ANG REV SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5096 pcs	Data sheet	47504-0001.pdf
Voltage - Rated	30VAC/DC	Termination	Solder
Specifications	-	Shielding	Shielded
Shell/Shielding Material	Copper Alloy	Series	47504
Packaging	Tape & Reel (TR)	Other Names	047504-0001 047504-0001-C 0475040001 0475040001-C 47504-0001-C 475040001 475040001-C WM17531TR
Operating Temperature	-	Number of Ports	1
Number of Contacts	4	Mounting Type	Surface Mount, Right Angle; Through Hole
Mounting Feature	Horizontal, Reverse Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	-	Material Flammability Rating	UL94 V-0
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Color	Black
Ingress Protection	-	Gender	Receptacle
Features	-	Detailed Description	USB - A Receptacle Connector 4 Position Surface Mount, Right Angle; Through Hole
Current Rating	1.5A per Contact	Contact Finish	Gold
Connector Type	USB - A
