44764-0802

Affinity Medical Technologies - a Molex company

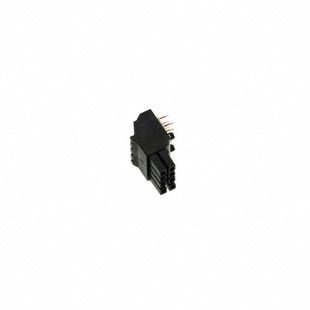

Image may be representation. See specifications for product details.

Product Overview

Part Number:	44764-0802
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 8POS 3MM R/A GOLD
Datasheets:	1.44764-0802.pdf 2.44764-0802.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	19375 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 19375 pcs

Reference Price (In US Dollars)

1 pcs: $1.618

10 pcs: $1.552

100 pcs: $1.293

500 pcs: $1.099

1000 pcs: $0.938

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.618

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 44764-0802

Part Number	44764-0802	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 8POS 3MM R/A GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	19375 pcs	Data sheet	1.44764-0802.pdf 2.44764-0802.pdf
Voltage Rating	600VAC	Termination	Solder
Style	Board to Board or Cable	Series	Micro-Fit 3.0 BMI 44764
Row Spacing - Mating	0.118" (3.00mm)	Pitch - Mating	0.118" (3.00mm)
Packaging	Tray	Other Names	044764-0802 044764-0802-E 0447640802 0447640802-E 44764-0802-E 44764-0802-TR130 447640802 447640802-E WM1990
Operating Temperature	-40°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	8
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled	Insulation Height	0.402" (10.20mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Guide	Fastening Type	Push-Pull
Detailed Description	8 Position Receptacle Connector 0.118" (3.00mm) Through Hole, Right Angle Gold	Current Rating	5A
Contact Type	Female Socket	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	0.155" (3.94mm)
Contact Finish Thickness - Post	100.0µin (2.54µm)	Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Receptacle	Applications	General Purpose, Telecommunications
