43650-0228

Affinity Medical Technologies - a Molex company

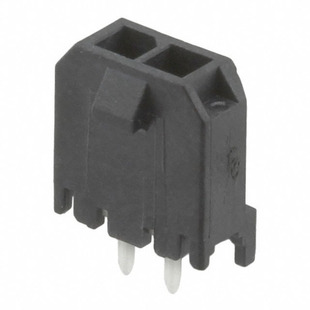

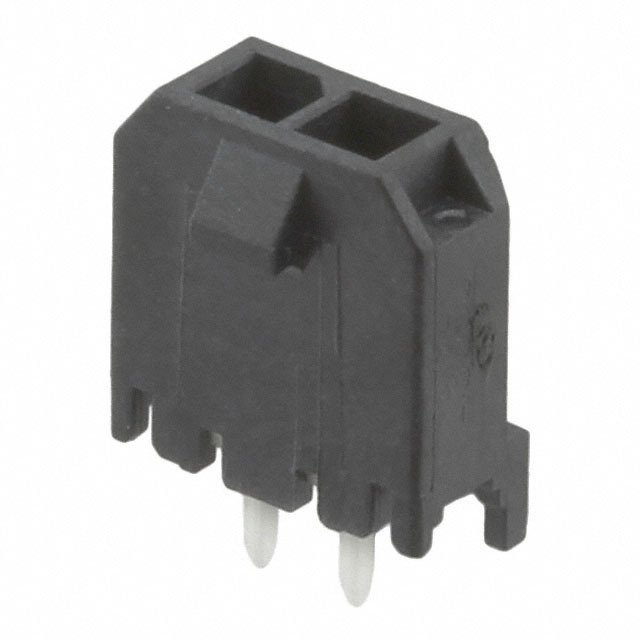

Image may be representation. See specifications for product details.

Product Overview

Part Number:	43650-0228
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	MICROFIT 3.0 SR VERT TH PEG 15AU
Datasheets:	1.43650-0228.pdf 2.43650-0228.pdf 3.43650-0228.pdf 4.43650-0228.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	125965 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 125965 pcs

Reference Price (In US Dollars)

1 pcs: $0.311

10 pcs: $0.273

100 pcs: $0.236

500 pcs: $0.193

3264 pcs: $0.155

6528 pcs: $0.15

13056 pcs: $0.139

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.311

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 43650-0228

Part Number	43650-0228	Manufacturer	Affinity Medical Technologies - a Molex company
Description	MICROFIT 3.0 SR VERT TH PEG 15AU	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	125965 pcs	Data sheet	1.43650-0228.pdf 2.43650-0228.pdf 3.43650-0228.pdf 4.43650-0228.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Micro-Fit 3.0 43650	Row Spacing - Mating	-
Pitch - Mating	0.118" (3.00mm)	Packaging	Tray
Overall Contact Length	-	Other Names	0436-50-0228 043650-0228 0436500228 0436500228-ND 436500228 WM10658
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	17.56mm
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled	Insulation Height	0.390" (9.91mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Guide	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole 2 position 0.118" (3.00mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.125" (3.18mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	15.0µin (0.38µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	General Purpose, Medical, Military, Telecommunications
