Affinity Medical Technologies - a Molex company

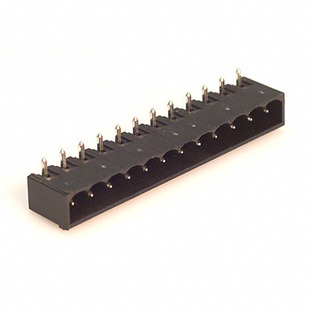

| Part Number | 39870-0712 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | TERM BLOCK HDR 12POS 90DEG 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3213 pcs | Data sheet | 39870-0712.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | Eurostyle 39870 |
| Screw Size | - | Positions Per Level | 12 |
| Plug Wire Entry | - | Pitch | 0.197" (5.00mm) |
| Packaging | Bulk | Other Names | 039870-0712 039870-0712-E 0398700712 0398700712-E 39870-0712-E 398700712 398700712-E 871912 WM5891 |
| Operating Temperature | 110°C | Number of Positions | 12 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.331" (8.40mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | 90°, Right Angle | Features | - |
| Detailed Description | 12 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) 90°, Right Angle Through Hole | Current - UL | 15A |
| Current - IEC | - | Contact Tail Length | 0.130" (3.30mm) |
| Contact Mating Finish | Tin | Contact Material | Brass |
| Color | Black |
