Affinity Medical Technologies - a Molex company
| Part Number | 39501-1015 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|

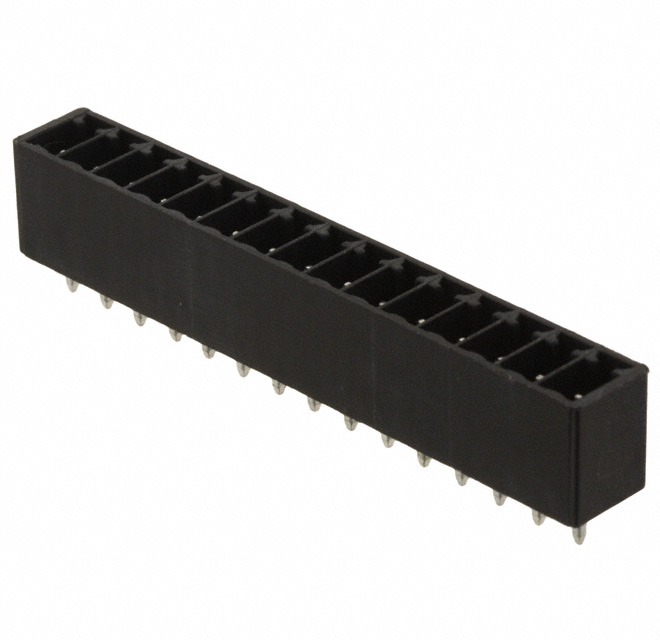

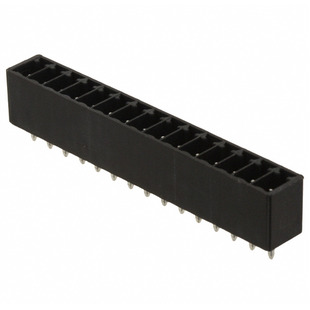

| Description | TERM BLOCK HDR 15POS VERT 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17451 pcs | Data sheet | 39501-1015.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | Eurostyle ESE 39501 |
| Screw Size | - | Positions Per Level | 15 |
| Plug Wire Entry | - | Pitch | 0.138" (3.50mm) |
| Packaging | Bulk | Other Names | 039501-1015 039501-1015-E 0395011015 0395011015-E 39501-1015-E 395011015 395011015-E WM7764 |
| Operating Temperature | -40°C ~ 105°C | Number of Positions | 15 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.360" (9.14mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA66), Nylon 6/6 | Header Orientation | Vertical |
| Features | - | Detailed Description | 15 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) Vertical Through Hole |
| Current - UL | 8A | Current - IEC | - |
| Contact Tail Length | 0.140" (3.56mm) | Contact Mating Finish | Tin |
| Contact Material | Brass | Color | Black |
