Affinity Medical Technologies - a Molex company
| Part Number | 39355-0004 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|

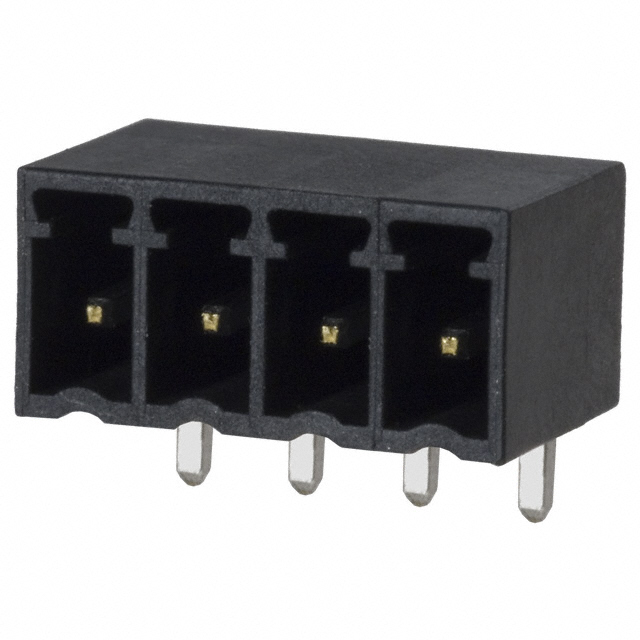

| Description | TERM BLOCK HDR 4POS 90DEG 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6287 pcs | Data sheet | 39355-0004.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | Eurostyle 39355 |
| Screw Size | - | Positions Per Level | 4 |
| Plug Wire Entry | - | Pitch | 0.138" (3.50mm) |
| Packaging | Bulk | Other Names | 039355-0004 039355-0004-P 0393550004 0393550004-P 351904 39355-0004-P 393550004 393550004-P WM5645 |
| Operating Temperature | 140°C | Number of Positions | 4 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.280" (7.10mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA46), Nylon 4/6 |
| Header Orientation | 90°, Right Angle | Features | - |
| Detailed Description | 4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole | Current - UL | 10A |
| Current - IEC | - | Contact Tail Length | 0.136" (3.45mm) |
| Contact Mating Finish | Tin | Contact Material | Brass |
| Color | Black |
