39-30-6187

Affinity Medical Technologies - a Molex company

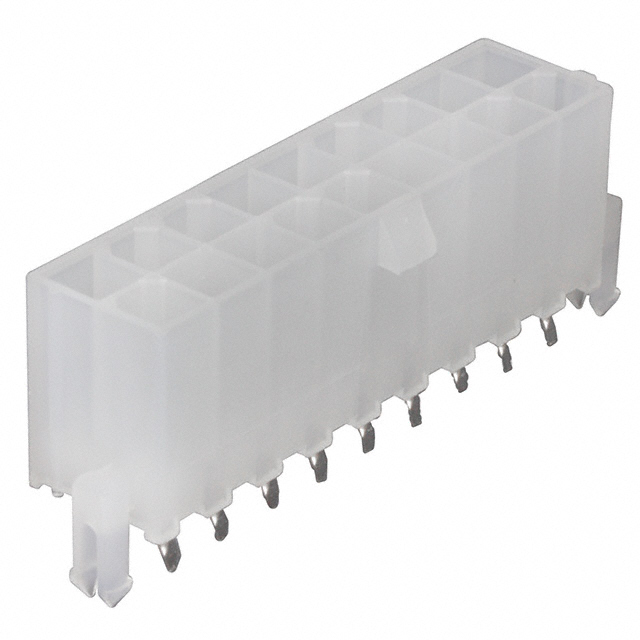

Image may be representation. See specifications for product details.

Product Overview

Part Number:	39-30-6187
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 18POS 4.2MM VERT TIN
Datasheets:	1.39-30-6187.pdf 2.39-30-6187.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	52030 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 52030 pcs

Reference Price (In US Dollars)

1 pcs: $0.751

10 pcs: $0.682

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.751

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 39-30-6187

Part Number	39-30-6187	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 18POS 4.2MM VERT TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	52030 pcs	Data sheet	1.39-30-6187.pdf 2.39-30-6187.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Mini-Fit Jr 5566	Row Spacing - Mating	0.165" (4.20mm)
Pitch - Mating	0.165" (4.20mm)	Packaging	Tray
Overall Contact Length	-	Other Names	003930-6187 0039306187 03930-6187 039306187 3930-6187 39306187 5566-18B2S WM17753
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	18
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-2	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA66), Nylon 6/6
Insulation Height	0.504" (12.80mm)	Insulation Color	Natural
Ingress Protection	-	Features	Board Lock
Fastening Type	Locking Ramp	Detailed Description	Connector Header Through Hole 18 position 0.165" (4.20mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Brass
Contact Length - Post	0.138" (3.50mm)	Contact Length - Mating	-
Contact Finish Thickness - Post	100.0µin (2.54µm)	Contact Finish Thickness - Mating	100.0µin (2.54µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	General Purpose, Industrial, Telecommunications
