39-29-9246

Affinity Medical Technologies - a Molex company

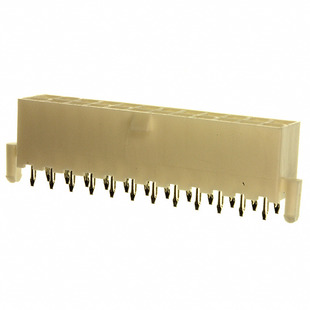

Image may be representation. See specifications for product details.

Product Overview

Part Number:	39-29-9246
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 24POS 4.2MM VERT TIN
Datasheets:	1.39-29-9246.pdf 2.39-29-9246.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	38732 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 38732 pcs

Reference Price (In US Dollars)

1 pcs: $0.914

10 pcs: $0.876

100 pcs: $0.73

500 pcs: $0.62

1000 pcs: $0.529

5000 pcs: $0.474

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.914

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 39-29-9246

Part Number	39-29-9246	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 24POS 4.2MM VERT TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	38732 pcs	Data sheet	1.39-29-9246.pdf 2.39-29-9246.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Mini-Fit Jr 5566	Row Spacing - Mating	0.165" (4.20mm)
Pitch - Mating	0.165" (4.20mm)	Packaging	Tray
Overall Contact Length	-	Other Names	0039299246 39299246 5566-24B2-210 WM3874
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	24
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6	Insulation Height	0.504" (12.80mm)
Insulation Color	Natural	Ingress Protection	-
Features	Board Lock	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole 24 position 0.165" (4.20mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.138" (3.50mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	35.0µin (0.90µm)
Contact Finish Thickness - Mating	35.4µin (0.90µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose, Industrial, Telecommunications
