26-64-4070

Affinity Medical Technologies - a Molex company

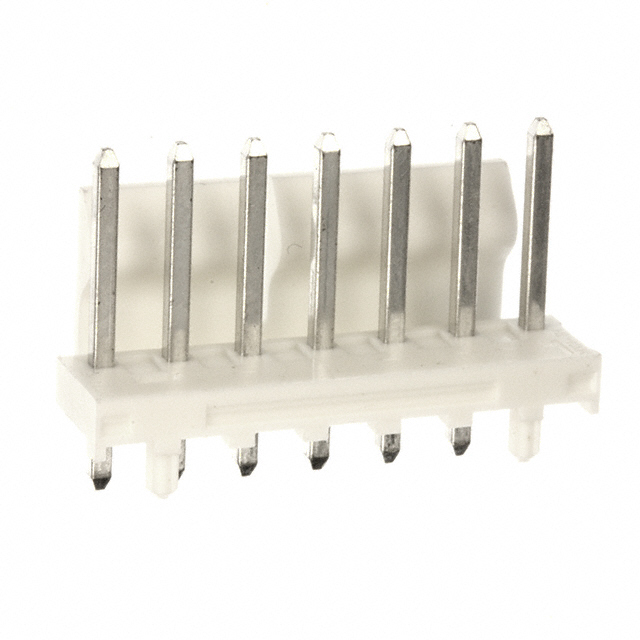

Image may be representation. See specifications for product details.

Product Overview

Part Number:	26-64-4070
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 7POS .156 VERT TIN
Datasheets:	26-64-4070.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	92427 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 92427 pcs

Reference Price (In US Dollars)

1 pcs: $0.347

10 pcs: $0.304

100 pcs: $0.262

500 pcs: $0.215

1000 pcs: $0.191

5000 pcs: $0.167

10000 pcs: $0.159

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.347

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 26-64-4070

Part Number	26-64-4070	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 7POS .156 VERT TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	92427 pcs	Data sheet	26-64-4070.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 1 Wall
Series	KK 42491	Row Spacing - Mating	-
Pitch - Mating	0.156" (3.96mm)	Packaging	Bulk
Overall Contact Length	0.720" (18.29mm)	Other Names	0026-64-4070 0026-64-4070-E 0026644070 0026644070-E 26-64-4070-E 26644070 26644070-E 42491-0007 WM4656
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	7
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyester	Insulation Height	0.446" (11.33mm)
Insulation Color	Natural	Ingress Protection	-
Features	Board Guide	Fastening Type	Friction Lock
Detailed Description	Connector Header Through Hole 7 position 0.156" (3.96mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.140" (3.56mm)
Contact Length - Mating	0.450" (11.43mm)	Contact Finish Thickness - Post	60.0µin (1.52µm)
Contact Finish Thickness - Mating	60.0µin (1.52µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive, General Purpose, Industrial, Medical, Telecommunications
