26-61-5110

Affinity Medical Technologies - a Molex company

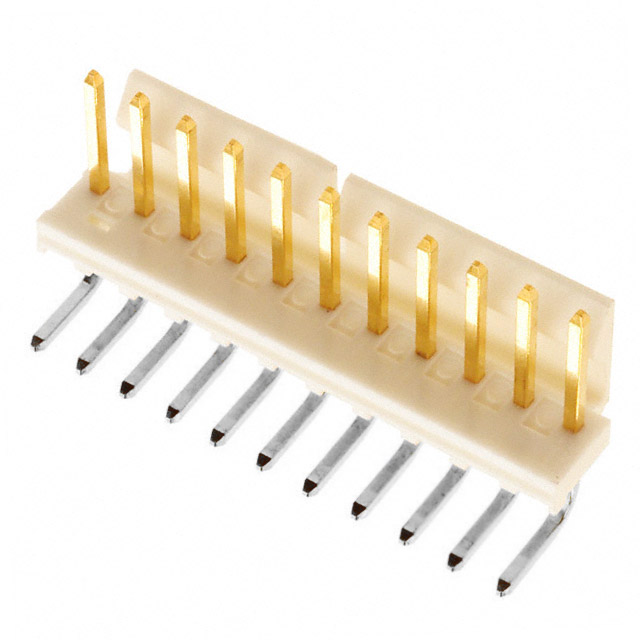

Image may be representation. See specifications for product details.

Product Overview

Part Number:	26-61-5110
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 11POS .156 R/A GOLD
Datasheets:	1.26-61-5110.pdf 2.26-61-5110.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	21982 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 21982 pcs

Reference Price (In US Dollars)

1000 pcs: $1.457

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.457

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 26-61-5110

Part Number	26-61-5110	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 11POS .156 R/A GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	21982 pcs	Data sheet	1.26-61-5110.pdf 2.26-61-5110.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 1 Wall
Series	KK 41792	Row Spacing - Mating	-
Pitch - Mating	0.156" (3.96mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	0026-61-5110 0026-61-5110-P 0026615110 0026615110-P 26-61-5110-P 26615110 26615110-P 41792-0028 WM5244
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	11
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	15 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyester, Glass Filled	Insulation Height	0.394" (10.00mm)
Insulation Color	Natural	Ingress Protection	-
Features	-	Fastening Type	Friction Lock
Detailed Description	Connector Header Through Hole, Right Angle 11 position 0.156" (3.96mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	-	Contact Length - Post	0.156" (3.96mm)
Contact Length - Mating	0.450" (11.43mm)	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	20.0µin (0.51µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	Automotive, General Purpose, Industrial, Medical, Telecommunications
