22-15-2066

Affinity Medical Technologies - a Molex company

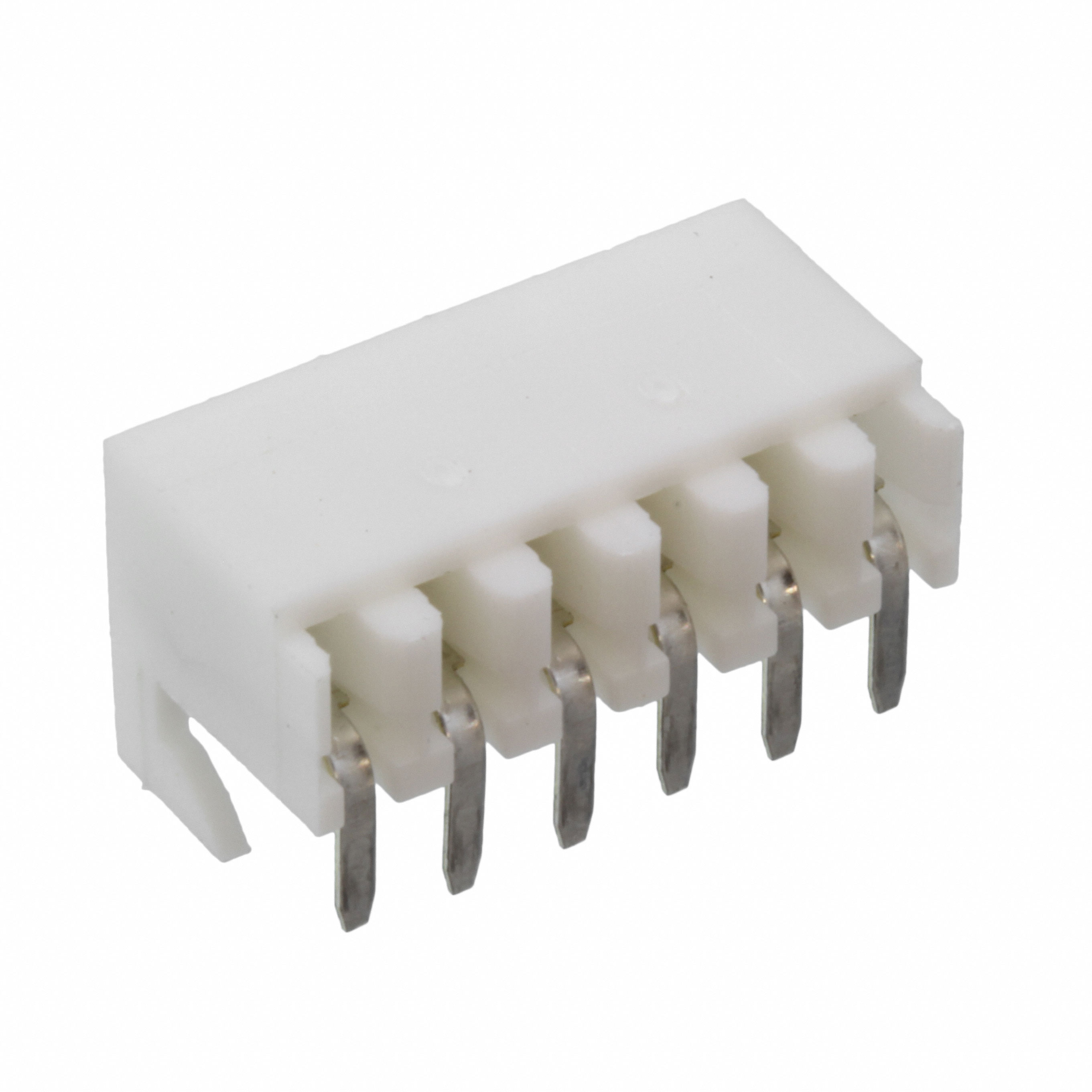

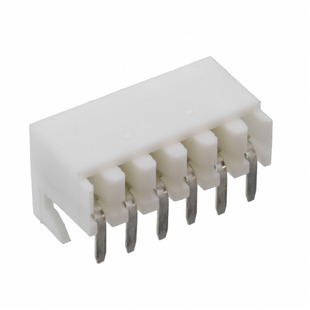

Image may be representation. See specifications for product details.

Product Overview

Part Number:	22-15-2066
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN RECEPT 6POS .100 R/A PCB
Datasheets:	1.22-15-2066.pdf 2.22-15-2066.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	99408 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 99408 pcs

Reference Price (In US Dollars)

1 pcs: $0.30

10 pcs: $0.263

100 pcs: $0.226

500 pcs: $0.185

1000 pcs: $0.165

5000 pcs: $0.144

10000 pcs: $0.137

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.30

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 22-15-2066

Part Number	22-15-2066	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN RECEPT 6POS .100 R/A PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	99408 pcs	Data sheet	1.22-15-2066.pdf 2.22-15-2066.pdf
Voltage Rating	250VAC	Termination	Solder
Style	Board to Board or Cable	Series	KK 4455
Row Spacing - Mating	-	Pitch - Mating	0.100" (2.54mm)
Packaging	Tray	Other Names	0022-15-2066 0022-15-2066-E 0022152066 0022152066-E 22-15-2066-E 22-15-2066-P 22152066 22152066-E A-4455-AZ06A(P909) WM3004
Operating Temperature	-40°C ~ 80°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	6
Mounting Type	Board Edge, Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	20 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.185" (4.70mm)
Insulation Color	White	Ingress Protection	-
Features	Board Hooks	Fastening Type	Push-Pull
Detailed Description	6 Position Receptacle Connector 0.100" (2.54mm) Board Edge, Through Hole, Right Angle Tin	Current Rating	2.5A
Contact Type	Non-Gendered	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.132" (3.35mm)
Contact Finish Thickness - Post	100.0µin (2.54µm)	Contact Finish Thickness - Mating	100.0µin (2.54µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Receptacle	Applications	Automotive, General Purpose, Medical, Telecommunications
