22-11-1021

Affinity Medical Technologies - a Molex company

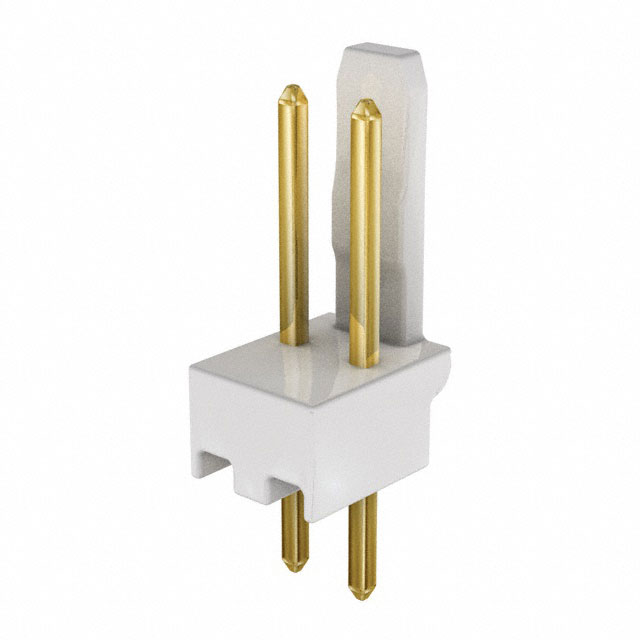

Image may be representation. See specifications for product details.

Product Overview

Part Number:	22-11-1021
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER VERT 2POS 2.5MM GOLD
Datasheets:	22-11-1021.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	384535 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 384535 pcs

Reference Price (In US Dollars)

30000 pcs: $0.09

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.09

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 22-11-1021

Part Number	22-11-1021	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER VERT 2POS 2.5MM GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	384535 pcs	Data sheet	22-11-1021.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 1 Wall
Series	KK 5045	Row Spacing - Mating	-
Pitch - Mating	0.098" (2.50mm)	Packaging	Bulk
Overall Contact Length	0.559" (14.20mm)	Other Names	0022111021 5045-02AG
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.461" (11.70mm)
Insulation Color	Natural	Ingress Protection	-
Features	-	Fastening Type	Friction Lock
Detailed Description	Connector Header Through Hole 2 position 0.098" (2.50mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.134" (3.40mm)
Contact Length - Mating	0.295" (7.49mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	13.8µin (0.35µm)	Contact Finish - Post	-
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
