22-05-7125

Affinity Medical Technologies - a Molex company

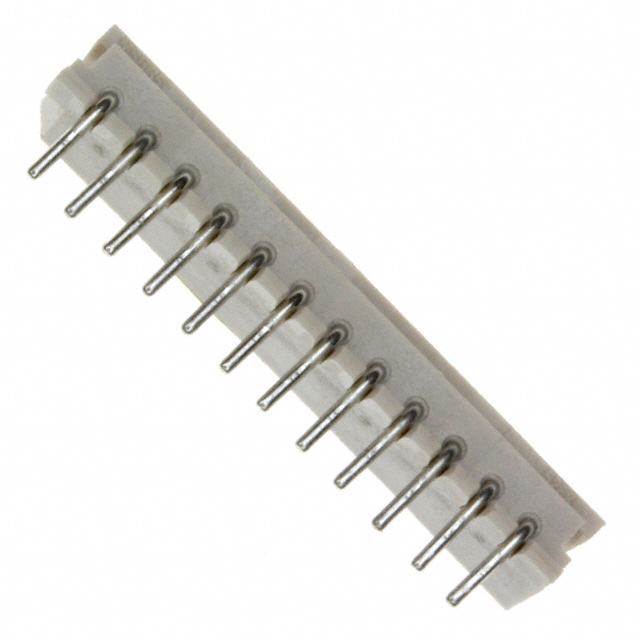

Image may be representation. See specifications for product details.

Product Overview

Part Number:	22-05-7125
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 12POS 2.5MM R/A TIN
Datasheets:	22-05-7125.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4334 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 4334 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 22-05-7125

Part Number	22-05-7125	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 12POS 2.5MM R/A TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4334 pcs	Data sheet	22-05-7125.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	SPOX 5268	Row Spacing - Mating	-
Pitch - Mating	0.098" (2.50mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	0022057125 22-05-7125-ND 5268-12A WM18910
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	12
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Insulation Height	0.193" (4.90mm)	Insulation Color	Natural
Ingress Protection	-	Features	-
Fastening Type	Detent Lock	Detailed Description	Connector Header Through Hole, Right Angle 12 position 0.098" (2.50mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Circular	Contact Material	Brass
Contact Length - Post	0.138" (3.50mm)	Contact Length - Mating	0.138" (3.50mm)
Contact Finish Thickness - Post	160.0µin (4.06µm)	Contact Finish Thickness - Mating	160.0µin (4.06µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	Automotive, General Purpose, Industrial, Medical, Telecommunications
