22-03-5035

Affinity Medical Technologies - a Molex company

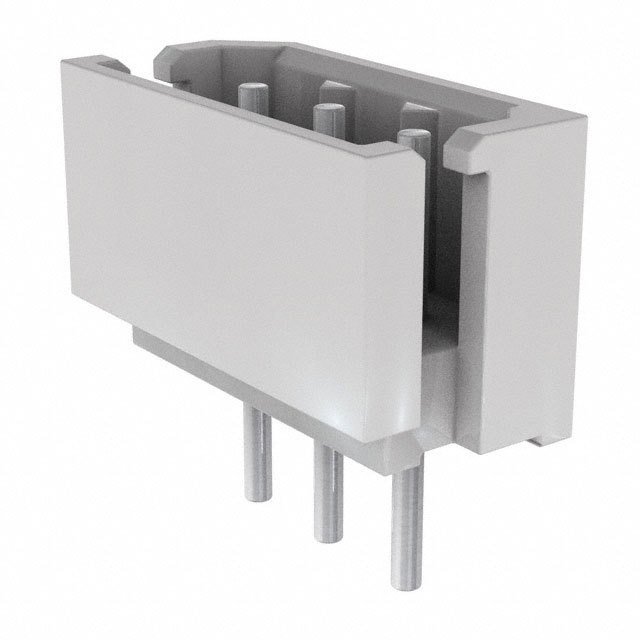

Image may be representation. See specifications for product details.

Product Overview

Part Number:	22-03-5035
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 3POS 2.5MM VERT TIN
Datasheets:	22-03-5035.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	191398 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 191398 pcs

Reference Price (In US Dollars)

1 pcs: $0.181

10 pcs: $0.171

100 pcs: $0.131

500 pcs: $0.114

1000 pcs: $0.094

5000 pcs: $0.083

10000 pcs: $0.077

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.181

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 22-03-5035

Part Number	22-03-5035	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 3POS 2.5MM VERT TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	191398 pcs	Data sheet	22-03-5035.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	SPOX 5267	Row Spacing - Mating	-
Pitch - Mating	0.098" (2.50mm)	Packaging	Bulk
Overall Contact Length	0.350" (8.89mm)	Other Names	0022-03-5035 0022-03-5035-E 0022035035 0022035035-E 22-03-5035-E 22-03-5035-ND 22035035 22035035-E 5267-03A WM18887
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	3
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled	Insulation Height	0.232" (5.90mm)
Insulation Color	-	Ingress Protection	-
Features	-	Fastening Type	Detent Lock
Detailed Description	Connector Header Through Hole 3 position 0.098" (2.50mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Circular
Contact Material	Brass	Contact Length - Post	0.138" (3.50mm)
Contact Length - Mating	0.138" (3.50mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive, General Purpose, Industrial, Medical, Telecommunications
