22-02-3063

Affinity Medical Technologies - a Molex company

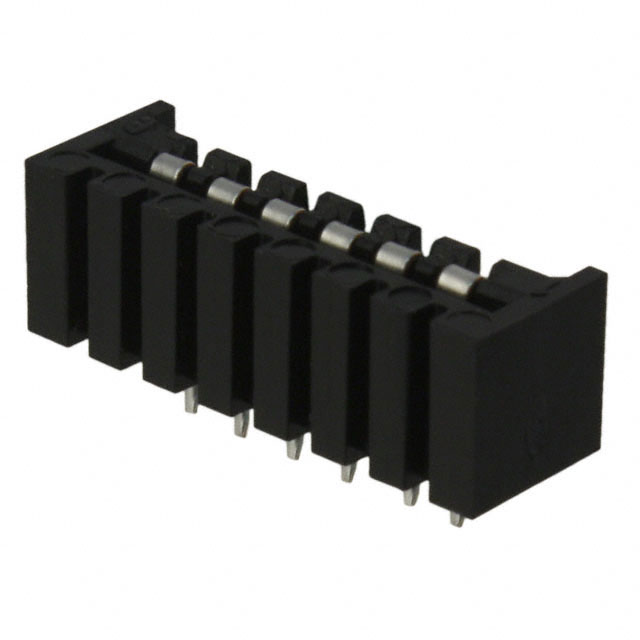

Image may be representation. See specifications for product details.

Product Overview

Part Number:	22-02-3063
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FFC VERT 6POS 2.54MM PCB
Datasheets:	22-02-3063.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	3930 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 3930 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 22-02-3063

Part Number	22-02-3063	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FFC VERT 6POS 2.54MM PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3930 pcs	Data sheet	22-02-3063.pdf
Voltage Rating	200V	Termination	Solder
Series	5229	Pitch	0.100" (2.54mm)
Packaging	Tray	Other Names	0022-02-3063 0022-02-3063-E 0022023063 0022023063-E 22-02-3063-E 22023063 22023063-E 5229-06CPB 5529-09CPB
Operating Temperature	-40°C ~ 105°C	Number of Positions	6
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	-	Material Flammability Rating	UL94 V-0
Locking Feature	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Housing Material	Polyester	Housing Color	-
Height Above Board	0.256" (6.50mm)	Flat Flex Type	FFC
Features	Low Insertion Force (LIF)	FFC, FCB Thickness	0.30mm
Detailed Description	6 Position FFC Connector Contacts, Vertical, 1 Sided 0.100" (2.54mm) Through Hole	Current Rating	1A
Contact Material	Phosphor Bronze	Contact Finish Thickness	-
Contact Finish	Tin	Connector/Contact Type	Contacts, Vertical, 1 Sided
Cable End Type	Straight	Actuator Material	-
Actuator Color	-
