2018421030

Affinity Medical Technologies - a Molex company

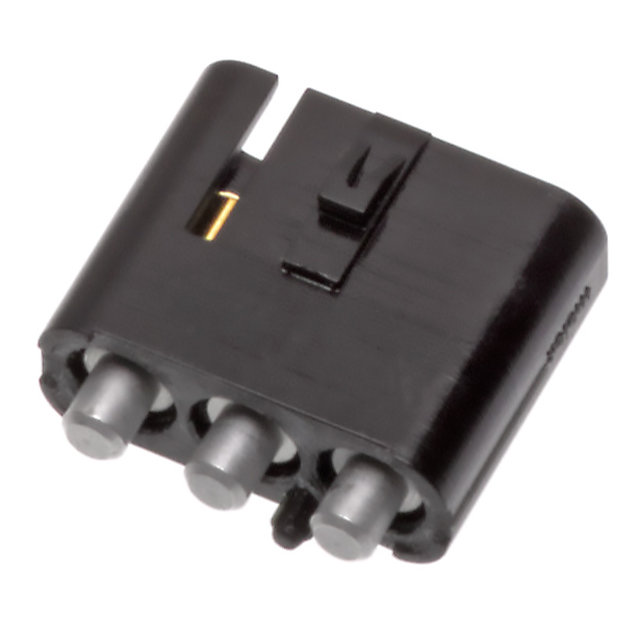

Image may be representation. See specifications for product details.

Product Overview

Part Number:	2018421030
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	MULTICAT VERT HDR ASSY 1X3 KEY A
Datasheets:	1.2018421030.pdf 2.2018421030.pdf 3.2018421030.pdf 4.2018421030.pdf 5.2018421030.pdf
RoHs Status	Vendor undefined / Vendor undefined
Stock Condition	5345 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5345 pcs

Reference Price (In US Dollars)

1 pcs: $6.264

10 pcs: $5.817

27 pcs: $5.22

54 pcs: $5.071

108 pcs: $4.474

270 pcs: $4.176

513 pcs: $4.086

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$6.264

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 2018421030

Part Number	2018421030	Manufacturer	Affinity Medical Technologies - a Molex company
Description	MULTICAT VERT HDR ASSY 1X3 KEY A	Lead Free Status / RoHS Status	Vendor undefined / Vendor undefined
Quantity Available	5345 pcs	Data sheet	1.2018421030.pdf 2.2018421030.pdf 3.2018421030.pdf 4.2018421030.pdf 5.2018421030.pdf
Voltage Rating	1200V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Multicat 201842	Row Spacing - Mating	-
Pitch - Mating	0.291" (7.40mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	201842-1030 WM16600
Operating Temperature	-40°C ~ 150°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	3
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	Not Applicable
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Vendor undefined / Vendor undefined
Insulation Material	Polyetherimide (PEI)	Insulation Height	0.776" (19.70mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Guide	Fastening Type	Latch Lock
Detailed Description	Connector Header Through Hole 3 position 0.291" (7.40mm)	Current Rating	Varies by Wire Gauge
Contact Type	Male Pin	Contact Shape	Circular
Contact Material	Copper Alloy	Contact Length - Post	0.132" (3.35mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	196.9µin (5.00µm)
Contact Finish Thickness - Mating	3.90µin (0.099µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	Aerospace, Automotive, Industrial, Medical
