19427-0040

Affinity Medical Technologies - a Molex company

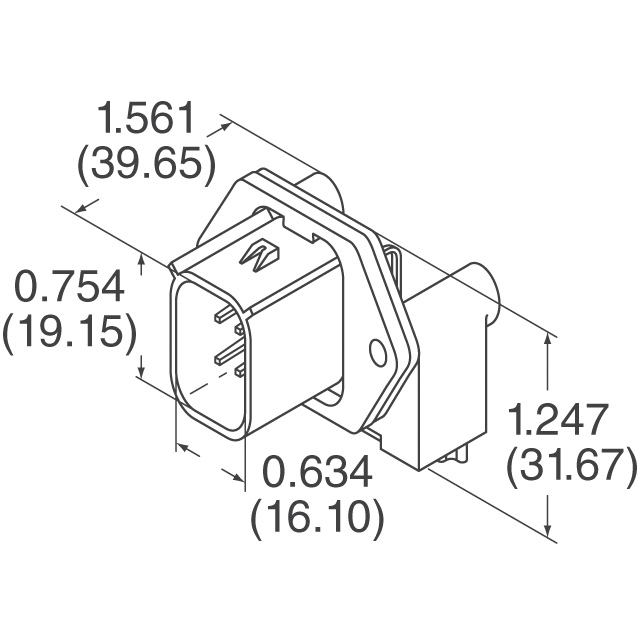

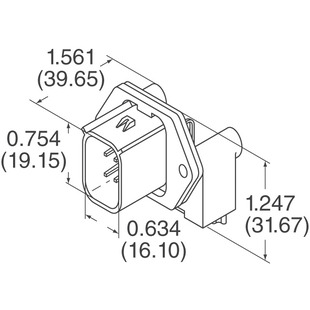

Image may be representation. See specifications for product details.

Product Overview

Part Number:	19427-0040
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 2POS RIGHT ANGLE TIN
Datasheets:	1.19427-0040.pdf 2.19427-0040.pdf 3.19427-0040.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	38552 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 38552 pcs

Reference Price (In US Dollars)

1040 pcs: $0.817

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.817

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 19427-0040

Part Number	19427-0040	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 2POS RIGHT ANGLE TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	38552 pcs	Data sheet	1.19427-0040.pdf 2.19427-0040.pdf 3.19427-0040.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	MX150L 19427	Row Spacing - Mating	-
Pitch - Mating	0.230" (5.84mm)	Packaging	Tray
Overall Contact Length	-	Other Names	0194270040 194270040 WM17504
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	2
Mounting Type	Panel Mount, Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Insulation Height	1.147" (29.13mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Guide	Fastening Type	Locking Ramp
Detailed Description	Connector Header Panel Mount, Through Hole, Right Angle 2 position 0.230" (5.84mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper Alloy	Contact Length - Post	0.134" (3.40mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	100.0µin (2.54µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive, General Purpose, Industrial
