19164-0005

Affinity Medical Technologies - a Molex company

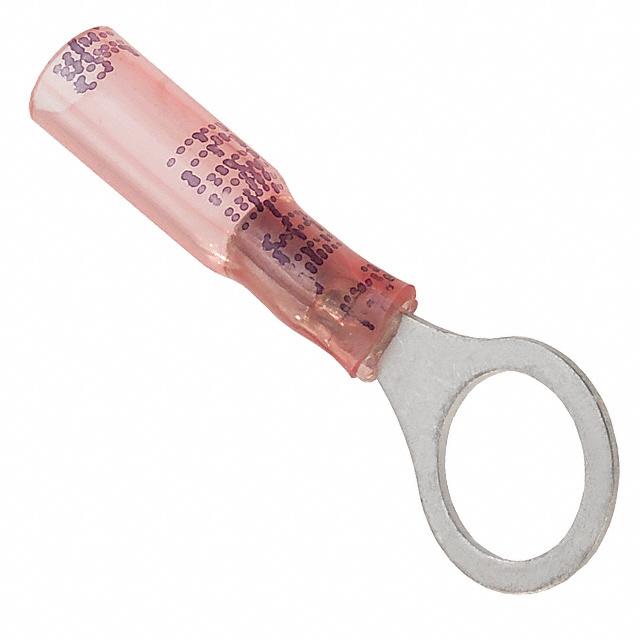

Image may be representation. See specifications for product details.

Product Overview

Part Number:	19164-0005
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN RING CIRC 18-22AWG #3/8
Datasheets:	19164-0005.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	152064 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 152064 pcs

Reference Price (In US Dollars)

1 pcs: $0.253

10 pcs: $0.238

25 pcs: $0.215

50 pcs: $0.191

100 pcs: $0.183

250 pcs: $0.167

500 pcs: $0.159

1000 pcs: $0.131

2500 pcs: $0.119

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.253

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 19164-0005

Part Number	19164-0005	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN RING CIRC 18-22AWG #3/8	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	152064 pcs	Data sheet	19164-0005.pdf
Wire Gauge	18-22 AWG	Width - Outer Edges	0.540" (13.72mm)
Thickness	0.032" (0.81mm)	Termination	Crimp
Terminal Type	Circular	Stud/Tab Size	3/8 Stud
Series	Perma-Seal	Packaging	Bulk
Other Names	019164-0005 019164-0005-C 0191640005 0191640005-C 191-64-0005-C 19164-0005-C 191640005 191640005-C SA-226-38 WM18401	Mounting Type	Free Hanging (In-Line)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Insulation	NiAc
Manufacturer Standard Lead Time	5 Weeks	Length - Overall	1.950" (49.53mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Diameter	0.235" (5.97mm)
Insulation	Insulated with Heat Shrink	Features	Serrated Termination
Detailed Description	Ring Terminal Connector 3/8 Stud Circular 18-22 AWG Crimp	Contact Material	Copper Alloy
Contact Finish	Tin	Color	Red
