19099-0003

Affinity Medical Technologies - a Molex company

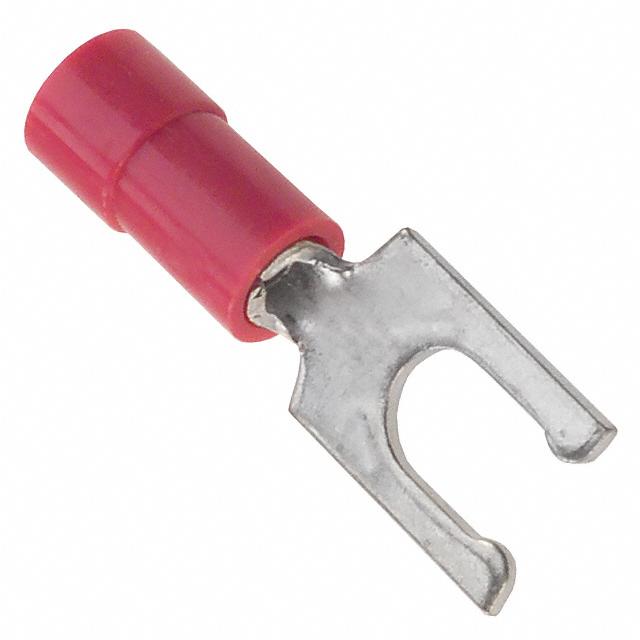

Image may be representation. See specifications for product details.

Product Overview

Part Number:	19099-0003
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN SPADE TERM 18-22AWG #8 RED
Datasheets:	1.19099-0003.pdf 2.19099-0003.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	815617 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 815617 pcs

Reference Price (In US Dollars)

100 pcs: $0.04

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.04

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 19099-0003

Part Number	19099-0003	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN SPADE TERM 18-22AWG #8 RED	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	815617 pcs	Data sheet	1.19099-0003.pdf 2.19099-0003.pdf
Wire Gauge	18-22 AWG	Width - Outer Edges	0.290" (7.37mm)
Tongue Inside Opening	0.137" (3.48mm)	Termination	Crimp
Terminal Type	Spring, Snap	Stud/Tab Size	8 Stud
Series	InsulKrimp	Packaging	Bulk
Other Names	0190990003 190-99-0003-C 19099-0003-C AA-2191-08X WM18316	Mounting Type	Free Hanging (In-Line)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Insulation	Poly-Vinyl Chloride (PVC)
Length - Termination	0.405" (10.29mm)	Length - Ring Center to Termination	0.235" (5.97mm)
Length - Overall	0.880" (22.35mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Diameter	0.145" (3.68mm)	Insulation	Insulated
Features	-	Detailed Description	Red 8 Stud Spade Terminal Connector Crimp 18-22 AWG
Contact Material	Copper	Contact Finish	Electro-Tin
Color	Red
