1726480104

Affinity Medical Technologies - a Molex company

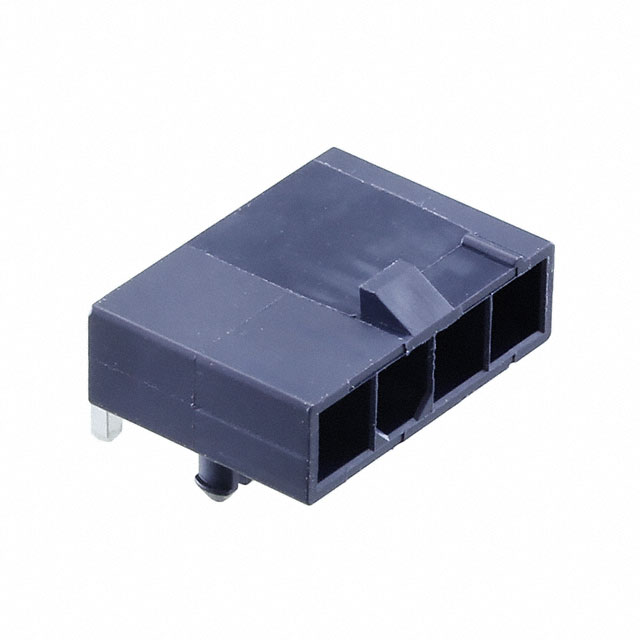

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1726480104
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	MINIFIT JR RA SRPEG TIN 4CKT
Datasheets:	1726480104.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	112086 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 112086 pcs

Reference Price (In US Dollars)

1 pcs: $0.282

10 pcs: $0.264

25 pcs: $0.238

50 pcs: $0.212

100 pcs: $0.203

250 pcs: $0.185

500 pcs: $0.176

1000 pcs: $0.145

2500 pcs: $0.132

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.282

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1726480104

Part Number	1726480104	Manufacturer	Affinity Medical Technologies - a Molex company
Description	MINIFIT JR RA SRPEG TIN 4CKT	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	112086 pcs	Data sheet	1726480104.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Mini-Fit Jr 172648	Row Spacing - Mating	-
Pitch - Mating	0.165" (4.20mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	172648-0104 1726480104-ND WM17569
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-2	Mated Stacking Heights	-
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.213" (5.40mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Guide, Glow Wire Compliant	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole, Right Angle 4 position 0.165" (4.20mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.138" (3.50mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	100.0µin (2.54µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose, Industrial, Telecommunications
