1724480010

Affinity Medical Technologies - a Molex company

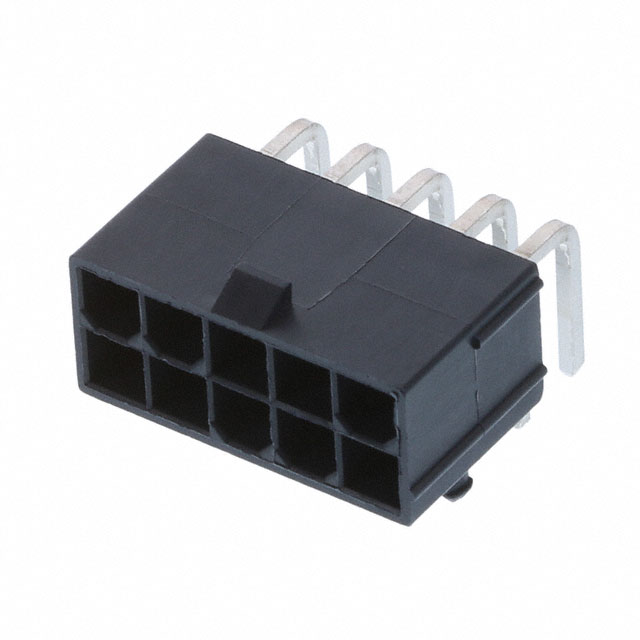

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1724480010
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	MINIFIT JR RA DRPEGS TIN GLOWWIR
Datasheets:	1.1724480010.pdf 2.1724480010.pdf 3.1724480010.pdf 4.1724480010.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	58914 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 58914 pcs

Reference Price (In US Dollars)

1 pcs: $0.657

10 pcs: $0.596

100 pcs: $0.511

500 pcs: $0.426

2240 pcs: $0.353

6720 pcs: $0.324

11200 pcs: $0.316

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.657

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1724480010

Part Number	1724480010	Manufacturer	Affinity Medical Technologies - a Molex company
Description	MINIFIT JR RA DRPEGS TIN GLOWWIR	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	58914 pcs	Data sheet	1.1724480010.pdf 2.1724480010.pdf 3.1724480010.pdf 4.1724480010.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Mini-Fit Jr 172448	Row Spacing - Mating	0.165" (4.20mm)
Pitch - Mating	0.165" (4.20mm)	Packaging	Tray
Overall Contact Length	-	Other Names	172448-0010 1724480010-ND WM17284
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	10
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-2	Mated Stacking Heights	-
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.378" (9.60mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Lock, Glow Wire Compliant	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole, Right Angle 10 position 0.165" (4.20mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.142" (3.60mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	100.0µin (2.54µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose, Industrial, Telecommunications
