1724470002

Affinity Medical Technologies - a Molex company

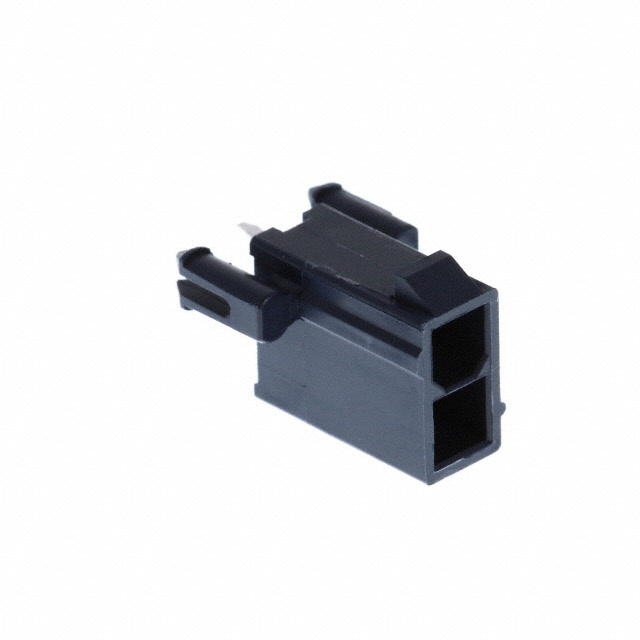

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1724470002
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	MINIFITJR VERT HDR WPEGS 2CKT GL
Datasheets:	1724470002.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	111196 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 111196 pcs

Reference Price (In US Dollars)

1 pcs: $0.282

10 pcs: $0.248

140 pcs: $0.214

560 pcs: $0.175

1120 pcs: $0.156

5040 pcs: $0.136

10080 pcs: $0.13

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.282

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1724470002

Part Number	1724470002	Manufacturer	Affinity Medical Technologies - a Molex company
Description	MINIFITJR VERT HDR WPEGS 2CKT GL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	111196 pcs	Data sheet	1724470002.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Mini-Fit Jr 172447	Row Spacing - Mating	0.165" (4.20mm)
Pitch - Mating	-	Packaging	Tray
Overall Contact Length	-	Other Names	172447-0002 1724470002-ND WM20745
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-2	Mated Stacking Heights	-
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.504" (12.80mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Guide, Glow Wire Compliant	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole 2 position	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.138" (3.50mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	100.0µin (2.54µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose, Industrial, Telecommunications
