1723162308

Affinity Medical Technologies - a Molex company

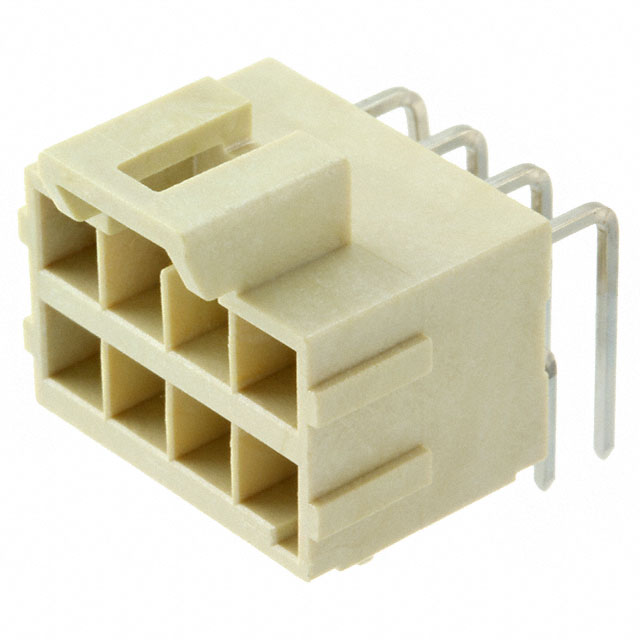

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1723162308
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	ULTRAFIT RA HDR ASSY 30 AU PLATE
Datasheets:	1.1723162308.pdf 2.1723162308.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	24931 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 24931 pcs

Reference Price (In US Dollars)

1 pcs: $1.239

10 pcs: $1.191

100 pcs: $0.993

500 pcs: $0.844

1000 pcs: $0.72

5000 pcs: $0.645

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.239

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1723162308

Part Number	1723162308	Manufacturer	Affinity Medical Technologies - a Molex company
Description	ULTRAFIT RA HDR ASSY 30 AU PLATE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	24931 pcs	Data sheet	1.1723162308.pdf 2.1723162308.pdf
Voltage Rating	400V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Ultra-Fit 172316	Row Spacing - Mating	0.181" (4.60mm)
Pitch - Mating	0.138" (3.50mm)	Packaging	Tray
Overall Contact Length	-	Other Names	WM11882
Operating Temperature	-40°C ~ 120°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	8
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP)	Insulation Height	0.534" (13.56mm)
Insulation Color	Natural	Ingress Protection	-
Features	Board Guide	Fastening Type	Latch Holder
Detailed Description	Connector Header Through Hole, Right Angle 8 position 0.138" (3.50mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper Alloy	Contact Length - Post	0.126" (3.20mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	60.0µin (1.52µm)
Contact Finish Thickness - Mating	30.0µin (0.76µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications
