1720640008

Affinity Medical Technologies - a Molex company

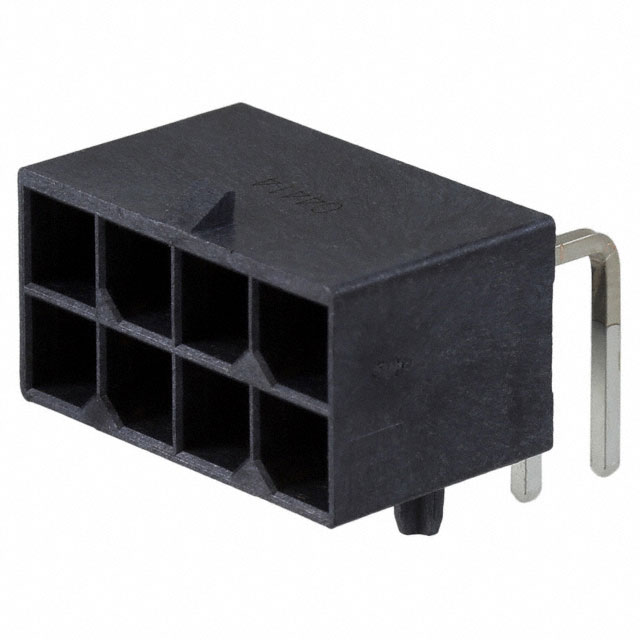

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1720640008
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	MEGA-FIT RA HDR 8 CKT GOLD
Datasheets:	1.1720640008.pdf 2.1720640008.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	16255 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 16255 pcs

Reference Price (In US Dollars)

1 pcs: $2.211

10 pcs: $2.124

100 pcs: $1.77

672 pcs: $1.504

1344 pcs: $1.283

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.211

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1720640008

Part Number	1720640008	Manufacturer	Affinity Medical Technologies - a Molex company
Description	MEGA-FIT RA HDR 8 CKT GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	16255 pcs	Data sheet	1.1720640008.pdf 2.1720640008.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Mega-Fit	Row Spacing - Mating	0.224" (5.70mm)
Pitch - Mating	0.224" (5.70mm)	Packaging	Tray
Overall Contact Length	-	Other Names	172064-0008 WM10394
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	8
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP)	Insulation Height	0.572" (14.53mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Guide, Glow Wire Compliant	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole, Right Angle 8 position 0.224" (5.70mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper	Contact Length - Post	0.142" (3.60mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	15.0µin (0.38µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	Automotive, General Purpose, Industrial, Telecommunications
