1718560003

Affinity Medical Technologies - a Molex company

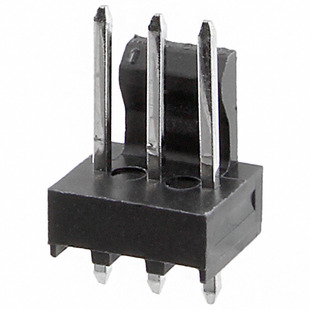

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1718560003
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	KK RPC 100 HDR FRLK VERT 03 CKT
Datasheets:	1.1718560003.pdf 2.1718560003.pdf 3.1718560003.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	282947 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 282947 pcs

Reference Price (In US Dollars)

1 pcs: $0.137

10 pcs: $0.129

100 pcs: $0.09

500 pcs: $0.077

1000 pcs: $0.064

5000 pcs: $0.055

10000 pcs: $0.052

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.137

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1718560003

Part Number	1718560003	Manufacturer	Affinity Medical Technologies - a Molex company
Description	KK RPC 100 HDR FRLK VERT 03 CKT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	282947 pcs	Data sheet	1.1718560003.pdf 2.1718560003.pdf 3.1718560003.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 1 Wall
Series	KK 171856	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	0.510" (12.95mm)	Other Names	171856-0003 WM10154
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	3
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-2	Mated Stacking Heights	-
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.322" (8.18mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Friction Lock
Detailed Description	Connector Header Through Hole 3 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.092" (2.34mm)
Contact Length - Mating	0.293" (7.45mm)	Contact Finish Thickness - Post	60.0µin (1.52µm)
Contact Finish Thickness - Mating	60.0µin (1.52µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive, General Purpose, Medical, Telecommunications
