1718140011

Affinity Medical Technologies - a Molex company

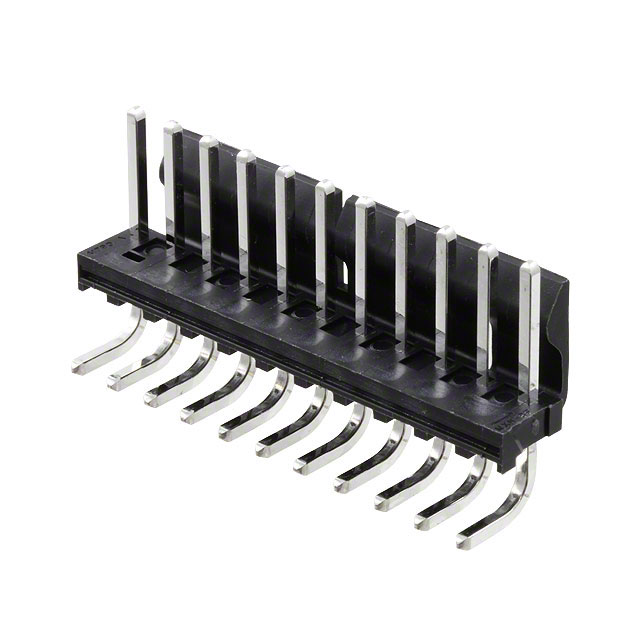

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1718140011
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	KK RPC 156 HDR ASSY FRLK RTAN 11
Datasheets:	1.1718140011.pdf 2.1718140011.pdf 3.1718140011.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	115961 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 115961 pcs

Reference Price (In US Dollars)

3000 pcs: $0.327

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.327

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1718140011

Part Number	1718140011	Manufacturer	Affinity Medical Technologies - a Molex company
Description	KK RPC 156 HDR ASSY FRLK RTAN 11	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	115961 pcs	Data sheet	1.1718140011.pdf 2.1718140011.pdf 3.1718140011.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 1 Wall
Series	KK 171814	Row Spacing - Mating	-
Pitch - Mating	0.156" (3.96mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	171814-0011 WM10181
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	11
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-2	Mated Stacking Heights	-
Manufacturer Standard Lead Time	15 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.394" (10.00mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Friction Lock
Detailed Description	Connector Header Through Hole, Right Angle 11 position 0.156" (3.96mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.100" (2.54mm)
Contact Length - Mating	0.446" (11.33mm)	Contact Finish Thickness - Post	60.0µin (1.52µm)
Contact Finish Thickness - Mating	60.0µin (1.52µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive, General Purpose, Industrial, Medical, Telecommunications
