1718131003

Affinity Medical Technologies - a Molex company

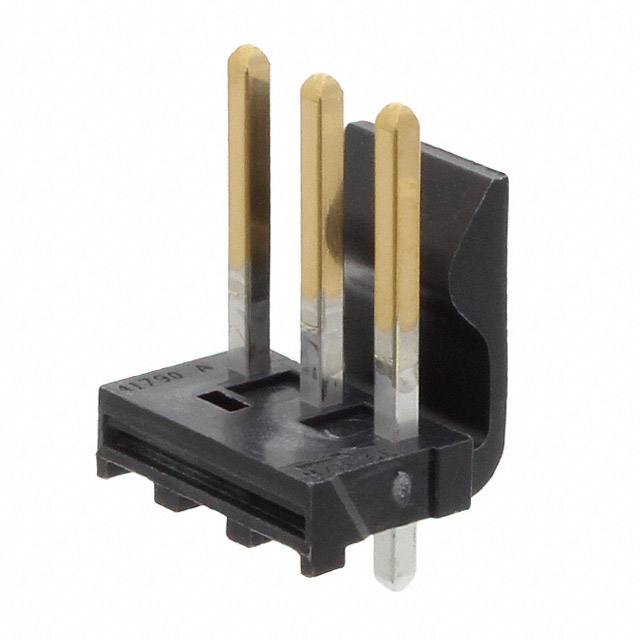

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1718131003
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	KK RPC 156 HDR ASSY FRLK 03 CKT
Datasheets:	1.1718131003.pdf 2.1718131003.pdf 3.1718131003.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	72937 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 72937 pcs

Reference Price (In US Dollars)

1 pcs: $0.408

10 pcs: $0.359

100 pcs: $0.31

500 pcs: $0.254

1000 pcs: $0.225

5000 pcs: $0.197

10000 pcs: $0.187

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.408

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1718131003

Part Number	1718131003	Manufacturer	Affinity Medical Technologies - a Molex company
Description	KK RPC 156 HDR ASSY FRLK 03 CKT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	72937 pcs	Data sheet	1.1718131003.pdf 2.1718131003.pdf 3.1718131003.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 1 Wall
Series	KK 171813	Row Spacing - Mating	-
Pitch - Mating	0.156" (3.96mm)	Packaging	Bulk
Overall Contact Length	0.671" (17.05mm)	Other Names	171813-1003 WM10198
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	3
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-2	Mated Stacking Heights	-
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.446" (11.33mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Friction Lock
Detailed Description	Connector Header Through Hole 3 position 0.156" (3.96mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.093" (2.35mm)
Contact Length - Mating	0.448" (11.38mm)	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	15.0µin (0.38µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	Automotive, General Purpose, Industrial, Medical, Telecommunications
