1600130023

Affinity Medical Technologies - a Molex company

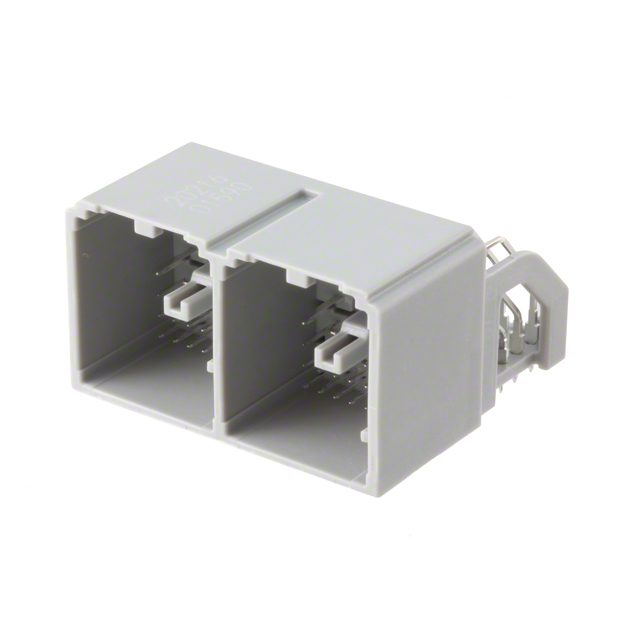

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1600130023
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 56POS KEY 2&3
Datasheets:	1.1600130023.pdf 2.1600130023.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	22148 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 22148 pcs

Reference Price (In US Dollars)

1 pcs: $1.561

10 pcs: $1.499

351 pcs: $1.093

702 pcs: $1.062

1053 pcs: $0.906

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.561

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1600130023

Part Number	1600130023	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 56POS KEY 2&3	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	22148 pcs	Data sheet	1.1600130023.pdf 2.1600130023.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	stAK50h 160013	Row Spacing - Mating	-
Pitch - Mating	-	Packaging	Tube
Overall Contact Length	-	Other Names	160013-0023 1600130023-ND WM20729
Operating Temperature	-40°C ~ 85°C	Number of Rows	-
Number of Positions Loaded	All	Number of Positions	56 (28 + 28)
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 HB	Mated Stacking Heights	-
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	-	Insulation Height	0.902" (22.90mm)
Insulation Color	Gray	Ingress Protection	-
Features	Board Guide	Fastening Type	Latch Holder
Detailed Description	Connector Header Through Hole, Right Angle 56 (28 + 28) position	Current Rating	-
Contact Type	Male Blade	Contact Shape	Rectangular
Contact Material	Copper Alloy	Contact Length - Post	0.083" (2.11mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive
