1511200404

Affinity Medical Technologies - a Molex company

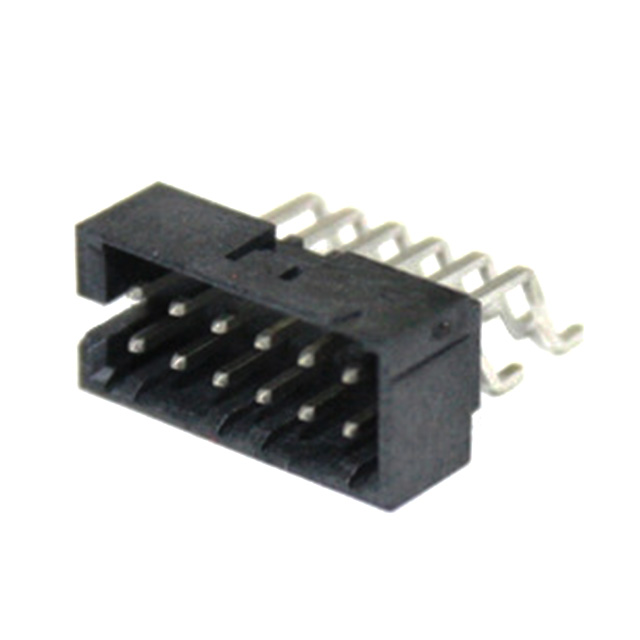

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1511200404
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	MGRID SHRD HDR RA SMT/TAPE 2.5SN
Datasheets:	1.1511200404.pdf 2.1511200404.pdf 3.1511200404.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	37405 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 37405 pcs

Reference Price (In US Dollars)

1 pcs: $0.932

10 pcs: $0.845

100 pcs: $0.724

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.932

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1511200404

Part Number	1511200404	Manufacturer	Affinity Medical Technologies - a Molex company
Description	MGRID SHRD HDR RA SMT/TAPE 2.5SN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	37405 pcs	Data sheet	1.1511200404.pdf 2.1511200404.pdf 3.1511200404.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	Milli-Grid 151120	Row Spacing - Mating	0.079" (2.00mm)
Pitch - Mating	0.079" (2.00mm)	Packaging	Cut Tape (CT)
Overall Contact Length	-	Other Names	WM16126CT
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Surface Mount, Right Angle	Material Flammability Rating	UL94 V-0
Mated Stacking Heights	-	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Insulation Height	0.248" (6.30mm)	Insulation Color	Black
Ingress Protection	-	Features	Glow Wire Compliant, Pick and Place
Fastening Type	Latch Holder	Detailed Description	Connector Header Surface Mount, Right Angle 4 position 0.079" (2.00mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Copper Alloy
Contact Length - Post	-	Contact Length - Mating	0.141" (3.60mm)
Contact Finish Thickness - Post	78.7µin (2.00µm)	Contact Finish Thickness - Mating	78.7µin (2.00µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	Automotive, General Purpose, Telecommunications
