15-31-1096

Affinity Medical Technologies - a Molex company

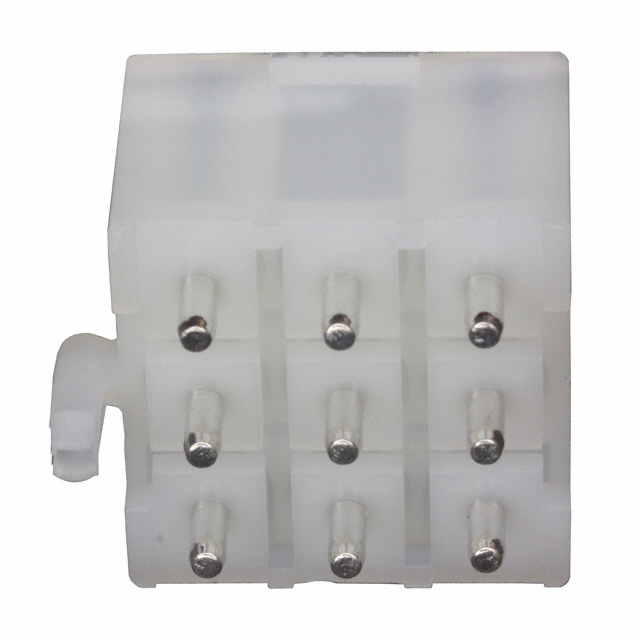

Image may be representation. See specifications for product details.

Product Overview

Part Number:	15-31-1096
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 9POS .093 VERT TIN
Datasheets:	15-31-1096.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	19404 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 19404 pcs

Reference Price (In US Dollars)

1 pcs: $1.608

10 pcs: $1.543

100 pcs: $1.286

500 pcs: $1.093

1000 pcs: $0.932

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.608

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 15-31-1096

Part Number	15-31-1096	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 9POS .093 VERT TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	19404 pcs	Data sheet	15-31-1096.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	5219	Row Spacing - Mating	0.264" (6.71mm)
Pitch - Mating	0.264" (6.71mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	0015-31-1096 0015-31-1096-E 0015311096 0015311096-E 15-31-1096-E 15311096 15311096-E A521909B WM1040
Operating Temperature	-	Number of Rows	3
Number of Positions Loaded	All	Number of Positions	9
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-2	Mated Stacking Heights	-
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6	Insulation Height	0.591" (15.00mm)
Insulation Color	Natural	Ingress Protection	-
Features	Board Lock	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole 9 position 0.264" (6.71mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Circular
Contact Material	Brass	Contact Length - Post	0.138" (3.50mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	120.0µin (3.05µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose, Telecommunications
