1461860300

Affinity Medical Technologies - a Molex company

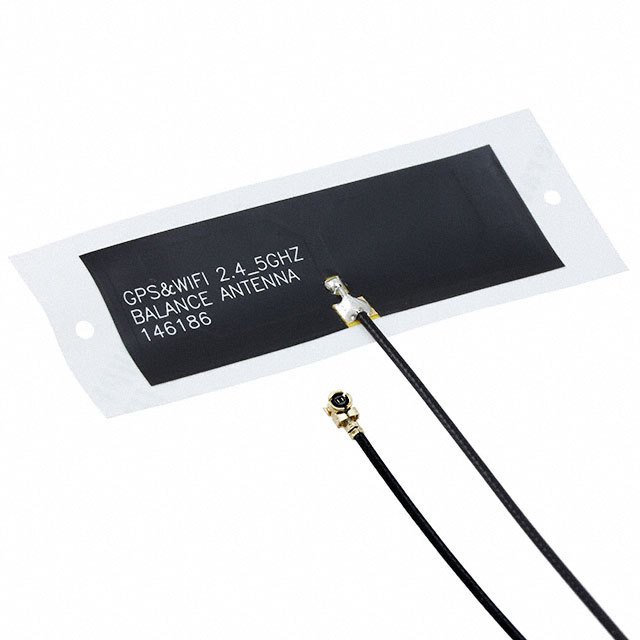

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1461860300
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	RF ANT 1.561/1.575GHZ FLAT 300MM
Datasheets:	1.1461860300.pdf 2.1461860300.pdf 3.1461860300.pdf 4.1461860300.pdf 5.1461860300.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	31657 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 31657 pcs

Reference Price (In US Dollars)

1 pcs: $1.232

10 pcs: $1.099

25 pcs: $0.988

100 pcs: $0.901

250 pcs: $0.813

500 pcs: $0.729

1000 pcs: $0.615

2500 pcs: $0.584

5000 pcs: $0.562

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.232

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1461860300

Part Number	1461860300	Manufacturer	Affinity Medical Technologies - a Molex company
Description	RF ANT 1.561/1.575GHZ FLAT 300MM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	31657 pcs	Data sheet	1.1461860300.pdf 2.1461860300.pdf 3.1461860300.pdf 4.1461860300.pdf 5.1461860300.pdf
VSWR	-	Termination	Cable (300mm) - U.FL
Series	146186	Return Loss	-10dB
Power - Max	2W	Packaging	Bulk
Other Names	14618-60300 WM12393	Number of Bands	5
Mounting Type	Adhesive	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Height (Max)	0.004" (0.10mm)
Gain	2.4dBi, 3dBi, 3.7dBi	Frequency Range	1.575GHz ~ 1.602GHz, 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz, 3GHz ~ 6GHz
Frequency Group	Wide Band	Frequency (Center/Band)	1.561GHz, 1.575GHz, 1.602GHz, 2.4GHz, 5GHz
Features	-	Detailed Description	1.561GHz, 1.575GHz, 1.602GHz, 2.4GHz, 5GHz BeiDou, GLONASS, WiMax, WLAN, Wi-Fi Flat Patch RF Antenna 1.575GHz ~ 1.602GHz, 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz, 3GHz ~ 6GHz 2.4dBi, 3dBi, 3.7dBi Cable (300mm) - U.FL Adhesive
Applications	BeiDou, GLONASS, WiMax, WLAN, Wi-Fi	Antenna Type	Flat Patch
